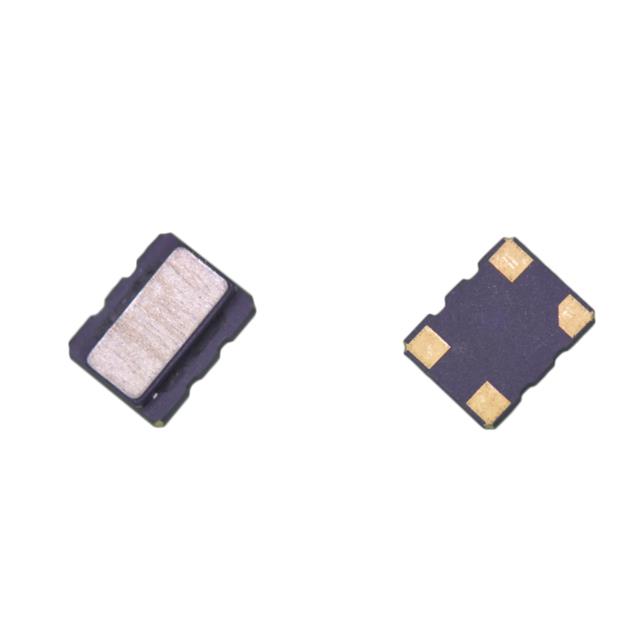

XTL1020P

Manufacturer :

RFMi

Product Category :

Crystals

Lead Shape :

NO LEAD

Maximum Operating Temperature (°C) :

85

Manufacturer :

Murata Connectivity

Series Resistance (Ohm) :

100

Type :

Crystal

ECCN (US) :

EAR99

Package Width :

2.5

Frequency Tolerance :

15 PPM

Frequency Tolerance (ppm) :

±15

HTS Code :

8541.60.00.50

Surface Mount :

yes

Load Capacitance :

15 pF

Package Length :

3.2

EU RoHS :

Compliant

Aging :

1 PPM/YEAR

Automotive :

No

Frequency Stability (ppm) :

±20

Drive Level :

10 µW

Load Capacitance (pF) :

15

Frequency Stability :

0.002%

Physical Dimension :

L3.2XB2.5XH0.7 (mm)/L0.126XB0.098XH0.028 (inch)

Mounting Feature :

Surface Mount

Standard Frequency (MHz) :

12.8

PPAP :

No

Pin Count :

4

Mounting :

Surface Mount

PCB changed :

4

Minimum Operating Temperature (°C) :

-40

Mode of Oscillation :

Fundamental

Supplier Package :

SMD

Frequency Aging (ppm/Year) :

±1

Crystal/Resonator Type :

PARALLEL - FUNDAMENTAL

Reach Compliance Code :

Unknown

Standard Package Name :

SMD

Packaging :

Tape and Reel

Package Height :

1.2(Max)

Series Resistance :

100 Ω

Additional Feature :

Tape and Reel
