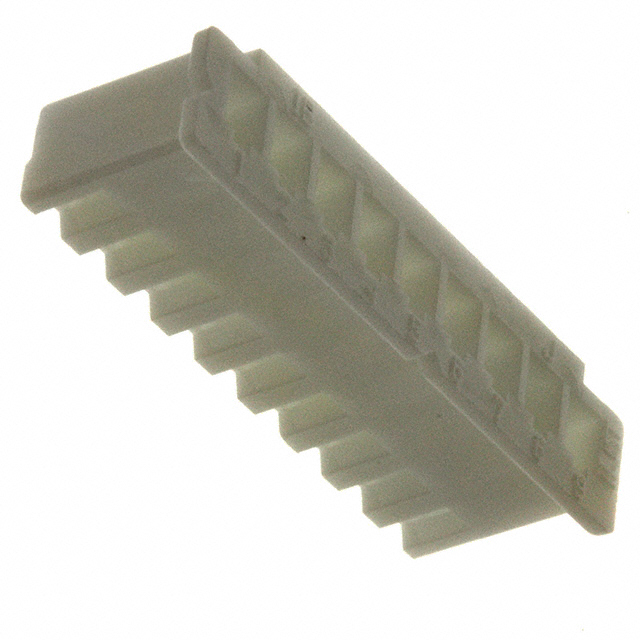

XHP-9
Or copy the link below:
- Mfr.Part #
- XHP-9
- Manufacturer
- JST
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 9POS 2.50MM
- Stock
- 73,340
- In Stock ：
- 73,340
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JST
- Product Category :
- Rectangular Connector Housings
- Lead Free :
- Lead Free
- Packaging :
- Bulk
- Series :
- XH
- Housing Material :
- Polyamide
- Wire Gauge (Min) :
- 22 AWG
- Weight :
- 28.349523g
- Note :
- Contacts Not Included
- Number of Positions :
- 9
- Contact Finish - Mating :
- NOT SPECIFIED
- Wire Gauge (Max) :
- 30 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Female Socket
- Reach Compliance Code :
- Unknown
- Max Voltage Rating (DC) :
- 250V
- Width :
- 5.7mm
- Wire/Cable Gauge :
- 22 AWG
- Factory Lead Time :
- 18 Weeks
- Contact Termination :
- Crimp
- Max Current Rating :
- 3A
- Min Operating Temperature :
- -25°C
- Depth :
- 7.75mm
- Insulation Resistance :
- 1GOhm
- MIL Conformance :
- No
- Length :
- 24.8mm
- Voltage - Rated AC :
- 250V
- Mount :
- Cable, Free Hanging
- Contact Resistance :
- 10MOhm
- Pitch :
- 0.098 2.50mm
- Option :
- GENERAL PURPOSE
- REACH SVHC :
- No SVHC
- Number of Rows :
- 1
- Pbfree Code :
- yes
- Max Voltage Rating (AC) :
- 250V
- Mounting Type :
- Free Hanging (In-Line)
- Connector Type :
- Receptacle
- Height :
- 12.7mm
- Contact Material :
- NOT SPECIFIED
- Housing Color :
- White
- IEC Conformance :
- No
- Mixed Contacts :
- No
- DIN Conformance :
- No
- Max Operating Temperature :
- 85°C
- Orientation :
- Straight
- Color :
- Natural
- Total Number of Contacts :
- 9
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Published :
- 2001
- Lead Pitch :
- 2.5mm
- RoHS Status :
- RoHS Compliant
- Current Rating :
- 3A
- Filter Feature :
- No
- Datasheets
- XHP-9
1 Rows Receptacle Bulk Natural 9 Positions Free Hanging (In-Line) Female Socket Crimp XH Polyamide
XHP-9 Overview
The product is packaged in Receptacle.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the XH Series.Part Cable, Free Hanging is mounted to the part.
XHP-9 Features
XH series
XHP-9 Applications
There are a lot of JST Sales America Inc.
XHP-9 Rectangular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
