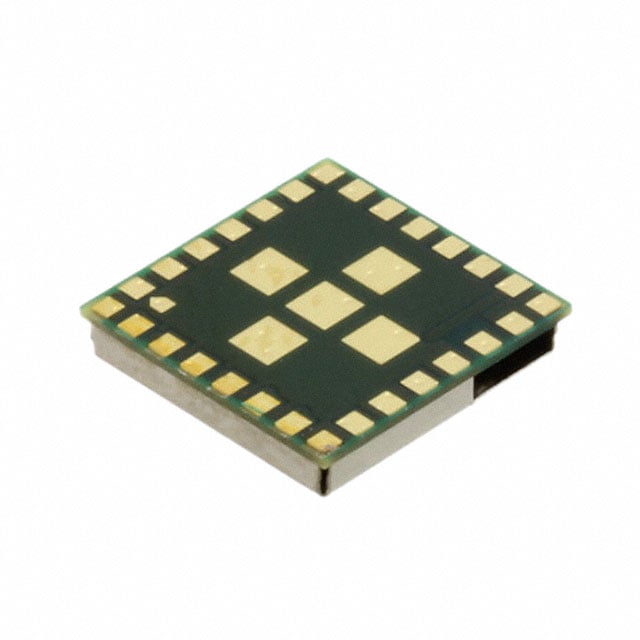

XCC2564MODNCMOET

Manufacturer :

Texas Instruments

Product Category :

RF Transceiver Modules and Modems

Utilized IC / Part :

CC2564

Terminal Position :

BOTTOM

Mounting Type :

Surface Mount

Serial Interfaces :

UART

Modulation :

DPSK, DQPSK, GFSK, GMSK

Packaging :

Tape and Reel (TR)

Height Seated (Max) :

1.4mm

Number of Terminations :

33

Protocol :

Bluetooth v4.0 Dual Mode

Operating Temperature :

-30°C~70°C

Number of Pins :

33

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Width :

7mm

Terminal Form :

BUTT

RF Family/Standard :

Bluetooth

HTS Code :

8542.39.00.01

Number of Functions :

1

Operating Supply Voltage :

4.8V

Mount :

Surface Mount

Telecom IC Type :

TELECOM CIRCUIT

Data Rate :

4Mbps

Current - Transmitting :

40.5mA~41.2mA

Power - Output :

10dBm

Sensitivity (dBm) :

-93 dBm

Voltage - Supply :

2.2V~4.8V

Radiation Hardening :

No

Frequency :

2.4GHz

Supply Voltage :

3.6V

Lead Free :

Contains Lead

Package / Case :

33-SMD Module

Length :

7mm

Current - Receiving :

40.5mA~41.2mA

Pbfree Code :

No

RoHS Status :

ROHS3 Compliant
