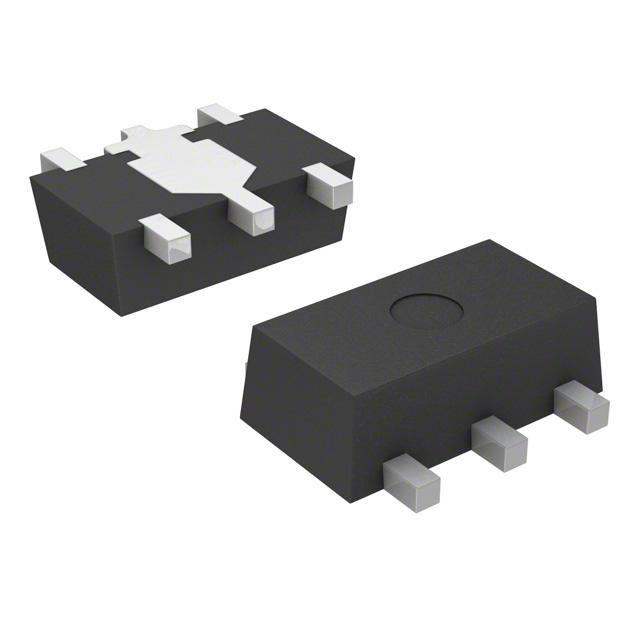

XC6216C202PR-G

Manufacturer :

Torex Semiconductor Ltd.

Product Category :

Voltage Regulators - Linear

Qualification Status :

Not Qualified

Protection Features :

Over Current, Over Temperature

Voltage Dropout (Max) :

2.6V @ 100mA

Load Regulation-Max(%) :

4.5%

Mount :

Surface Mount

Output Type :

Adjustable

Peak Reflow Temperature (Cel) :

260

Terminal Finish :

Tin (Sn)

Packing Method :

Tape and Reel

JESD-609 Code :

e3

Number of Terminations :

6

Voltage - Output (Max) :

25.4V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Package / Case :

SOT-89-5/6

Current - Quiescent (Iq) :

9μA

Mounting Type :

Surface Mount

Current - Output :

100mA

Number of Regulators :

1

Terminal Form :

Flat

Control Features :

Enable

Dropout Voltage1-Nom :

1.9V

Packaging :

Tape and Reel (TR)

Time@Peak Reflow Temperature-Max (s) :

10

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

JESD-30 Code :

R-PDFP-F6

Published :

2009

Terminal Position :

Dual

PSRR :

30dB (1kHz)

Voltage - Output (Min/Fixed) :

2V

Base Part Number :

XC6216

Factory Lead Time :

10 Weeks

Operating Temperature :

-40°C~85°C

Voltage - Input (Max) :

28V

Dropout Voltage :

1.9V

Output Configuration :

Positive
