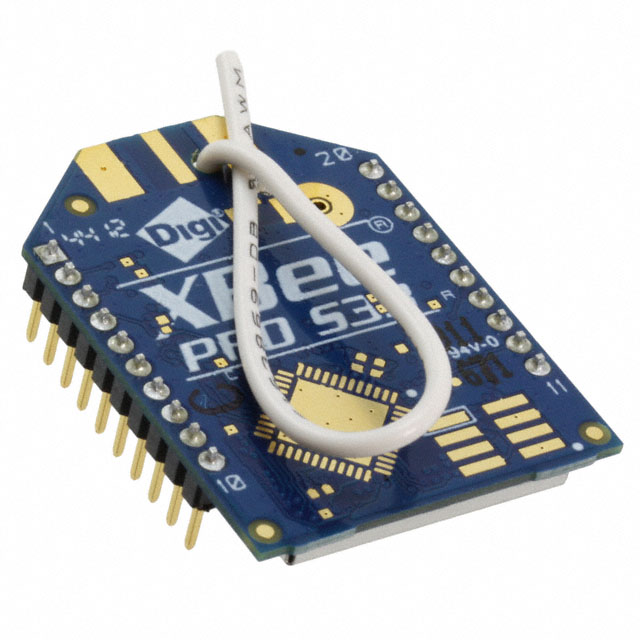

XBP9B-DPWT-001
Or copy the link below:
- Mfr.Part #
- XBP9B-DPWT-001
- Manufacturer
- Digi
- Package / Case
- Module
- Datasheet
- Download
- Description
- RX TXRX MOD ISM<1GHZ WIRE ANT TH
- Stock
- 48,778
- In Stock ：
- 48,778
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Digi
- Product Category :
- RF Transceiver Modules and Modems
- Factory Lead Time :
- 5 Weeks
- Modulation :
- FHSS
- Data Rate :
- 10kbps
- Published :
- 2009
- Series :
- XBee-Pro® 900HP
- Operating Temperature :
- -40°C~85°C
- Operating Supply Voltage :
- 3.6V
- RoHS Status :
- RoHS Compliant
- Antenna Type :
- Integrated, Wire Antenna
- Current - Transmitting :
- 229mA
- Voltage - Supply :
- 2.4V~3.6V
- Utilized IC / Part :
- ADF7023
- Current - Receiving :
- 44mA
- Sensitivity (dBm) :
- -110 dBm
- Package / Case :
- Module
- Packaging :
- Bulk
- Power - Output :
- 24dBm
- Serial Interfaces :
- SPI, UART
- RF Family/Standard :
- General ISM < 1GHz
- Number of Pins :
- 20
- Mounting Type :
- Through Hole
- Lead Free :
- Lead Free
- Memory Size :
- 32kB Flash 2kB RAM
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Frequency :
- 900MHz
- Datasheets
- XBP9B-DPWT-001
XBP9B-DPWT-001 Documents
900MHz General ISM < 1GHz -40°C~85°C 2.4V~3.6V SPI, UART Bulk Integrated, Wire Antenna 10kbps 24dBm Module
XBP9B-DPWT-001 Overview
As far as RF Transceiver' mounting is concerned, Through Hole is adopted.optimized performance is achieved by utilizing the Bulk package in this RF Transceiver module.During Transceiver operation, the operating temperature should remain at -40°C~85°C.There are 20 pins used for high power RF Transceiver operation.In the XBee-Pro® 900HP family, this part palys an important role in RF Transceiver Module's traget applications.It is possible to supply 2.4V~3.6V volts to the RF Transceiver.RF Transceiver Modules operate with a frequency of 900MHz Hz.
XBP9B-DPWT-001 Features
Through Hole
Bulk package
20 pins
2.4V~3.6V volts
XBP9B-DPWT-001 Applications
There are a lot of Digi
XBP9B-DPWT-001 RF Transceiver Modules applications.
- Internet of Things (IoT)
- Secure Payment
- Home and Security
- Health and Fitness
- Industrial and Data Logger
- LED Lighting
- Utility and Smart Energy
- Thermostats
- Smart Meters
- HVAC
