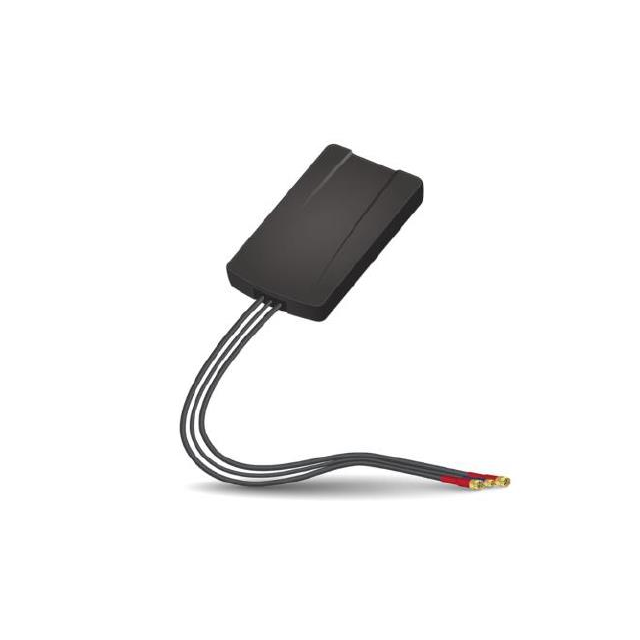

X1005245-LSA3SA10A2

Manufacturer :

KYOCERA AVX

Product Category :

RF Antennas

Input Power :

-

Mounting Style :

Adhesive Mount

Input Impedance :

50Ohm

Center Frequency :

1561 MHz, 1575 MHz, 1602 MHz, 649 MHz, 1610 MHz, 2495 MHz

Height :

12.7 mm

Antenna Connector Type :

SMA Male

Subcategory :

Antennas

Product Type :

GNSS Antennas - GPS, GLONASS, Galileo, Beidou

Antenna Mounting :

Adhesive

VSWR :

2

IP Rating :

IPX7

Connector Type :

SMA

Product :

Outdoor Antennas

Maximum Operating Temperature :

+ 85 C

Number of Bands :

6 Band

Power Rating :

-

Minimum Operating Temperature :

- 40 C

Frequency Range :

698 → 960 MHz, 1561 MHz, 1575 MHz, 1602 MHz, 1710 → 2170 MHz, 2300 → 2690 MHz

Type :

MIMO Antenna

Width :

72.4 mm

Termination Style :

Connector

Impedance :

50 Ohms

Cable Type :

1 M RG174, 1 M CFD200

Application :

Remote Monitoring, POS, Gateway, Telematics, Tracking, Healthcare, M2M, Smart Grid, Logistics, Energy, Retail

Style :

I-Bar

Antenna Type :

GNSS / MIMO LTE

Length :

136.2 mm

Gain :

3.7dBi
