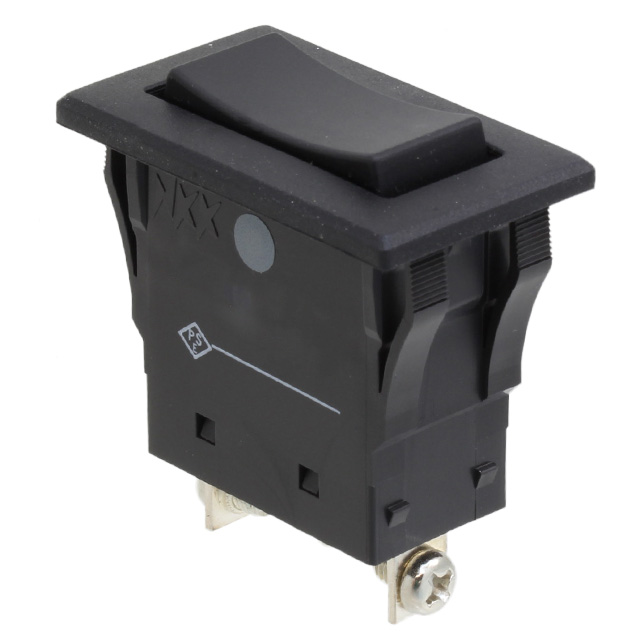

WR19AT

Manufacturer :

NKK Switches

Product Category :

Length - Termination :

0.327 inch

Contact Voltage(AC)-Max :

250V

Contact Function :

ON-OFF-(ON)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Actuator Length :

0.209 inch

Panel Cutout Dimensions :

Rectangular - 34.20mm x 17.20mm

Contact (AC) Max Rating R Load :

15A@250VAC

Contact Plating :

Silver

Ingress Protection :

IP67 - Dust Tight, Waterproof

Illumination Type :

Illuminated

Actuator Marking :

No Marking

Series :

WR

Operating Temperature :

-25°C~85°C

Switch Function :

On-Off-Mom

Switch Type :

ROCKER SWITCH

Terminal Material :

Brass

Circuit :

SPDT

Current Rating (Amps) :

15A AC/DC

Termination Style :

Screw Terminal

Factory Lead Time :

16 Weeks

Termination :

Screw

Published :

2014

Packaging :

Bulk

Voltage - Rated AC :

125V

Body Length or Diameter :

40.9956mm

Pbfree Code :

yes

Housing Material :

Polyamide

Mechanical Life :

30,000 Cycles

Electrical Life :

10,000 Cycles

Feature :

Epoxy Sealed Terminals

Solderability :

Hand

Current Rating :

15A

Ratings :

Dust Tight, IP67, Waterproof

Body Height :

30.5816mm

ECCN Code :

EAR99

Voltage - Rated DC :

30V

Mount :

Panel, Snap in

Actuator Angle :

24 deg

Actuator Type :

Concave (Curved)

Color - Actuator/Cap :

Black

Insulation Resistance :

200000000Ohm

Mounting Type :

Panel Mount, Snap-In

Contact Resistance :

0.01mOhm

RoHS Status :

ROHS3 Compliant

Actuator Material :

POLYPHENYLENE OXIDE

Body Breadth :

24.003 mm

Package / Case :

Epoxy
