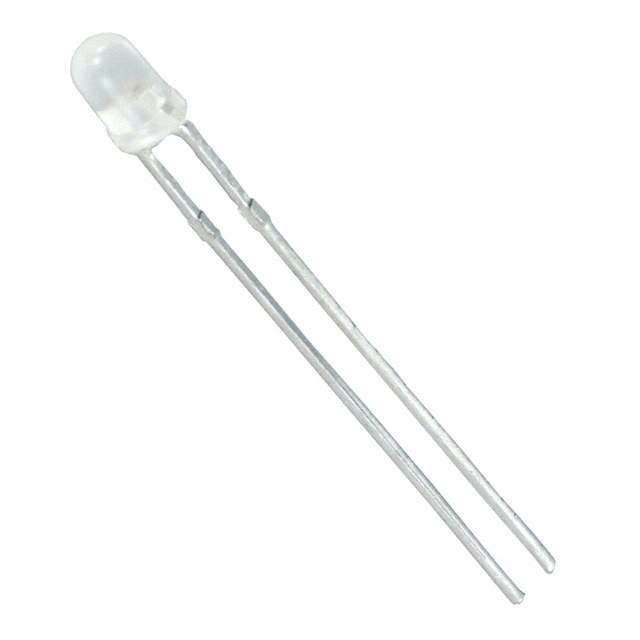

WP937EGW

Manufacturer :

Kingbright

Product Category :

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Terminations :

2

Current :

30mA

Voltage - Rated :

2V

Lens Transparency :

Diffused

Lens Style :

Round with Domed Top

Lens Color :

White

Terminal Pitch :

2.54mm

Element Configuration :

Single

Mount :

Through Hole

Number of Functions :

1

Factory Lead Time :

12 Weeks

Color :

Green, Red

Wavelength - Peak :

565nm Green 627nm Red

ECCN Code :

EAR99

Additional Feature :

IC COMPATIBLE, HIGH RELIABILITY

Wavelength - Dominant :

568nm Green 617nm Red

Viewing Angle :

60°

Luminous Intensity :

10 mcd

Voltage - Forward (Vf) (Typ) :

2.2V Green 2V Red

Package / Case :

Radial

Millicandela Rating :

14mcd Green, 10mcd Red

Pbfree Code :

yes

Forward Current :

20mA

Operating Temperature (Max) :

85°C

HTS Code :

8541.40.20.00

Current - Test :

20mA Green 20mA Red

Height :

4.6mm

Lens Size :

3mm T-1

T-code :

T-1

Packaging :

Bulk

RoHS Status :

ROHS3 Compliant

Configuration :

Bidirectional

Illumination Color :

Green, Red

Published :

2012

Mounting Type :

Through Hole

Lead Free :

Lead Free

Operating Temperature (Min) :

-40°C

Optoelectronic Device Type :

DUAL COLOR LED
