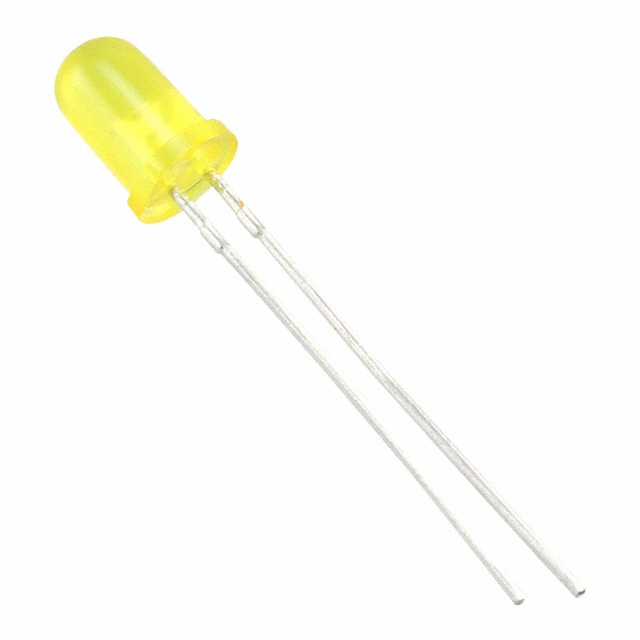

WP7113SYD

Manufacturer :

Kingbright

Product Category :

Number of Functions :

1

HTS Code :

8541.40.20.00

Lead Free :

Lead Free

RoHS Status :

ROHS3 Compliant

Voltage - Rated :

250V

Package / Case :

Radial

Packaging :

Bulk

Additional Feature :

High Reliability

Min Operating Temperature :

-40°C

Lens Transparency :

Diffused

Height :

8.6mm

Voltage - Forward (Vf) (Typ) :

2V

Color :

Yellow

Power Rating :

250mW

Factory Lead Time :

12 Weeks

Lens Size :

5mm T-1 3/4

Millicandela Rating :

1200mcd

Wavelength - Dominant :

590nm

Pbfree Code :

yes

Max Operating Temperature :

85°C

Resistance :

22.1kOhm

ECCN Code :

EAR99

Forward Current :

20mA

Viewing Angle :

30°

Mounting Type :

Through Hole

Mount :

Through Hole

Luminous Intensity :

1.2 cd

Length :

6.2992mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Configuration :

Standard

Packing Method :

Tape and Reel

Lens Style :

Round with Domed Top

Number of Terminations :

2

Published :

2007

Tolerance :

1%

Optoelectronic Device Type :

SINGLE COLOR LED

Terminal Pitch :

2.54mm
