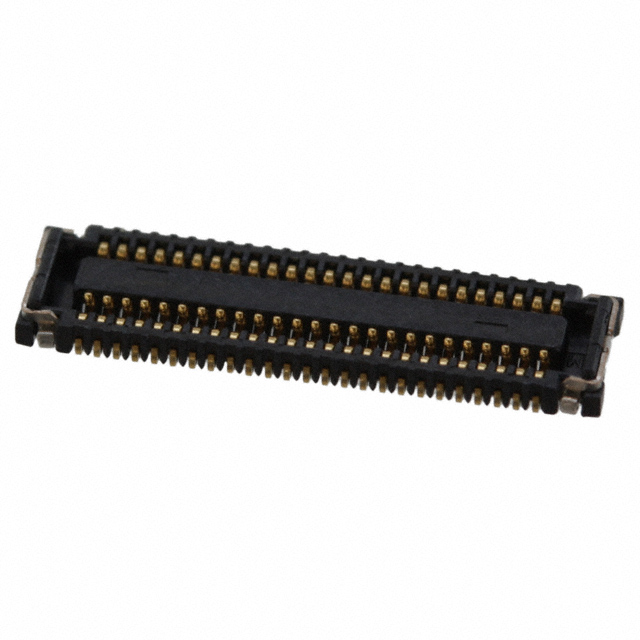

WP3-S050VA1-R500
Or copy the link below:
- Mfr.Part #
- WP3-S050VA1-R500
- Manufacturer
- JAE Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 50POS SMD GOLD
- Stock
- 32,780
- In Stock ：
- 32,780
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JAE Electronics
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Stack Height (Mating) :
- 1mm
- Number of Positions :
- 50
- Current Rating :
- 400mA
- Height Above Board :
- 0.039 1.00mm
- Packaging :
- Tape and Reel (TR)
- Voltage - Rated :
- 50V
- Max Operating Temperature :
- 85°C
- Pitch :
- 0.016 0.40mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Surface Mount
- Stack Height :
- 1mm
- Series :
- WP3
- Mount :
- Surface Mount
- Termination :
- SMD/SMT
- Contact Finish Thickness :
- 3.94μin 0.10μm
- Feature :
- Solder Retention
- Number of Rows :
- 2
- Contact Finish :
- Gold
- Insulation Resistance :
- 100MOhm
- Published :
- 2011
- Contact Plating :
- Gold
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Plastic
- Min Operating Temperature :
- -45°C
- Connector Type :
- Receptacle, Center Strip Contacts
- Datasheets
- WP3-S050VA1-R500
Receptacle, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 50 Positions WP3 Gold SMD/SMT
WP3-S050VA1-R500 Overview
It comes in Receptacle, Center Strip Contacts packaging.In order to package the product, a Tape & Reel (TR) case is used.The device's mounting type is Surface Mount.It belongs to the WP3 Series of products.When operating, it is possible to ensure that Solder Retention is maintained.It is necessary to use a Surface Mount socket in order to mount this part.It's best to use it when the temperature is below 85°C.This device must operate at a minimum temperature of -45°C.
WP3-S050VA1-R500 Features
WP3 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -45°C
WP3-S050VA1-R500 Applications
There are a lot of JAE Electronics
WP3-S050VA1-R500 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
