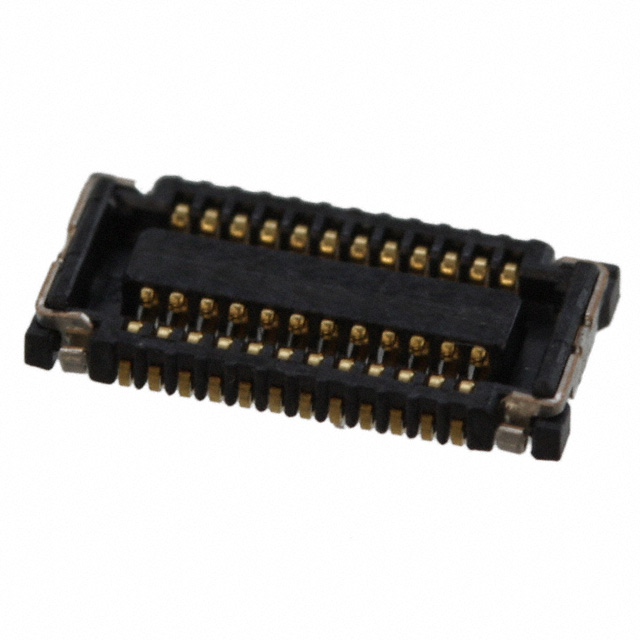

WP3-S024VA1-R500
Or copy the link below:
- Mfr.Part #
- WP3-S024VA1-R500
- Manufacturer
- JAE Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 24POS SMD GOLD
- Stock
- 24,231
- In Stock ：
- 24,231
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JAE Electronics
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Contact Finish Thickness :
- 3.94μin 0.10μm
- Number of Positions :
- 24
- Pitch :
- 0.016 0.40mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Stack Height :
- 1mm
- Stack Height (Mating) :
- 1mm
- Feature :
- Solder Retention
- Current Rating :
- 400mA
- Max Operating Temperature :
- 85°C
- Contact Plating :
- Gold
- Insulation Resistance :
- 100MOhm
- Mount :
- Surface Mount
- Contact Finish :
- Gold
- Height Above Board :
- 0.039 1.00mm
- Number of Rows :
- 2
- Housing Material :
- Plastic
- Packaging :
- Tape and Reel (TR)
- RoHS Status :
- RoHS Compliant
- Series :
- WP3
- Published :
- 2011
- Voltage - Rated :
- 50V
- Min Operating Temperature :
- -45°C
- Termination :
- SMD/SMT
- Mounting Type :
- Surface Mount
- Connector Type :
- Receptacle, Center Strip Contacts
- Datasheets
- WP3-S024VA1-R500
Receptacle, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 24 Positions WP3 Gold SMD/SMT
WP3-S024VA1-R500 Overview
It comes in Receptacle, Center Strip Contacts packaging.In order to package the product, a Tape & Reel (TR) case is used.The device's mounting type is Surface Mount.It belongs to the WP3 Series of products.When operating, it is possible to ensure that Solder Retention is maintained.It is necessary to use a Surface Mount socket in order to mount this part.It's best to use it when the temperature is below 85°C.This device must operate at a minimum temperature of -45°C.
WP3-S024VA1-R500 Features
WP3 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -45°C
WP3-S024VA1-R500 Applications
There are a lot of JAE Electronics
WP3-S024VA1-R500 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
