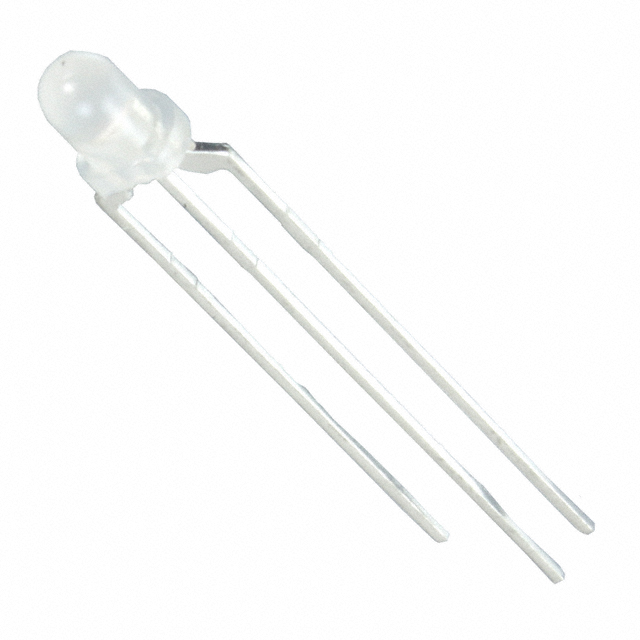

WP115WEGW

Manufacturer :

Kingbright

Product Category :

Terminal Pitch :

2.54mm

Additional Feature :

IC COMPATIBLE, HIGH RELIABILITY

Voltage - Forward (Vf) (Typ) :

2.2V Green 2V Red

Viewing Angle :

60°

Lens Color :

White

Forward Current-Max :

0.03A

Published :

2012

Illumination Color :

Green, Red

Lens Style :

Round with Domed Top

T-code :

T-1

Pbfree Code :

yes

Current - Test :

20mA Green 20mA Red

Packaging :

Bulk

Lens Size :

3mm T-1

Number of Functions :

1

Wavelength - Dominant :

568nm Green 617nm Red

Number of Terminations :

3

Factory Lead Time :

12 Weeks

Max Operating Temperature :

85°C

Lens Transparency :

Diffused

Reverse Voltage-Max :

5V

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Wavelength - Peak :

565nm Green 627nm Red

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Color :

Green, Red

Min Operating Temperature :

-40°C

Mount :

Through Hole

Luminous Intensity :

40 mcd

Height :

5mm

Configuration :

Common Cathode

Lead Free :

Lead Free

HTS Code :

8541.40.20.00

Package / Case :

Radial - 3 Leads

Optoelectronic Device Type :

DUAL COLOR LED

Millicandela Rating :

40mcd Green, 20mcd Red

Forward Voltage-Max :

2.5V

Mounting Type :

Through Hole
