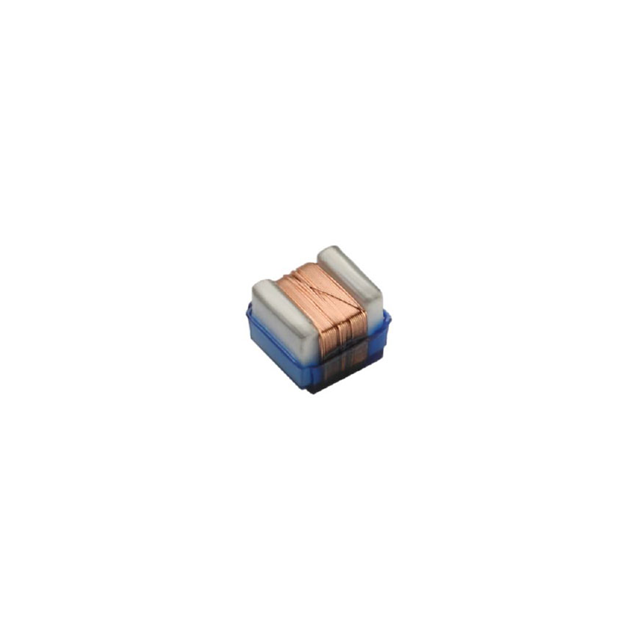

WL05JT2N8

Manufacturer :

Viking Tech

Product Category :

Fixed Inductors

Surface Mount :

yes

Shape/Size Description :

RECTANGULAR PACKAGE

Supplier Device Package :

0805

Packing Method :

TR

Inductance :

2.8 nH

Current - Saturation (Isat) :

-

Rated Current-Max :

0.8 A

Operating Temperature :

-40°C ~ 125°C

Series :

WL

Package / Case :

0805 (2012 Metric)

Inductor Type :

GENERAL PURPOSE INDUCTOR

Case/Size Code :

0907

Manufacturer :

Viking Technology

Terminal Shape :

ONE SURFACE

Ratings :

AEC-Q200

Quality Factor-Min (at L-nom) :

80

Terminal Placement :

DUAL ENDED

Size / Dimension :

0.090" L x 0.068" W (2.29mm x 1.73mm)

Package :

Tape and Reel (TR)

Reference Standard :

AEC-Q200

Frequency - Self Resonant :

7.9GHz

Current Rating (Amps) :

800 mA

HTS Code :

8504.50.80.00

Shielded :

No

Material - Core :

Ceramic

Features :

-

Height - Seated (Max) :

0.060" (1.52mm)

Core Material :

Ceramic

Number of Terminals :

2

Q @ Freq :

80 @ 1.5GHz

DC Resistance :

0.06 Ω

Construction :

Chip

Inductor Application :

RF INDUCTOR

Product Status :

Active

Number of Functions :

1

Package Height :

1.52 mm

Test Frequency :

250 MHz

Type :

Drum Core, Wirewound

ECCN Code :

EAR99

Tolerance :

±5%

Inductance-Nom (L) :

0.0028 µH

DC Resistance (DCR) :

60mOhm Max

Package Width :

1.73 mm

Inductance Frequency - Test :

250 MHz

Shielding :

Unshielded

Package Length :

2.29 mm

Reach Compliance Code :

Unknown

Mounting Type :

Surface Mount
