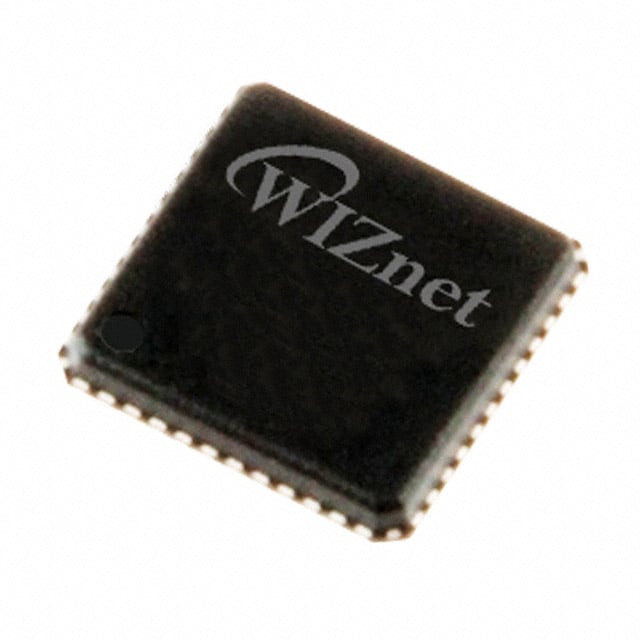

W5200
Or copy the link below:
- Mfr.Part #
- W5200
- Manufacturer
- WIZnet
- Package / Case
- 48-VFQFN Exposed Pad
- Datasheet
- Download
- Description
- IC CONTROLLER ETHERNET 48QFN
- Stock
- 21,042
- In Stock ：
- 21,042
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- WIZnet
- Product Category :
- Controllers
- Factory Lead Time :
- 4 Weeks
- Standards :
- 10/100 Base-T/TX PHY
- Package / Case :
- 48-VFQFN Exposed Pad
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Length :
- 7mm
- Height :
- 700μm
- Operating Supply Voltage :
- 3.3V
- Number of Pins :
- 48
- Lead Free :
- Lead Free
- Published :
- 2007
- Operating Supply Current :
- 5μA
- Function :
- Controller
- Voltage - Supply :
- 2.97V~3.63V
- Operating Temperature :
- -40°C~85°C
- Mount :
- Surface Mount
- Max Power Dissipation :
- 528mW
- Width :
- 7mm
- RoHS Status :
- ROHS3 Compliant
- Interface :
- SPI
- Packaging :
- Cut Tape (CT)
- Number of Channels :
- 8
- Weight :
- 150.507618mg
- Protocol :
- Ethernet
- Max Supply Current :
- 5μA
- Data Rate :
- 100 Mbps
- Datasheets
- W5200
Controllers WIZnet W5200 Overview
The WIZnet W5200 is a highly efficient Ethernet controller designed to streamline Internet connectivity solutions across a broad range of applications. This 48QFN (quad-flat no-leads) package controller integrates a hardwired TCP/IP stack that supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE, which significantly offloads the CPU in your system, enhancing overall system performance and efficiency. Optimized for reliability and high-speed data processing, the Controllers WIZnet W5200 is ideal for developers looking to integrate networking capabilities into their projects with minimal overhead and maximum stability.
W5200 Features
The W5200 stands out with its ability to support up to eight simultaneous socket connections, offering versatility for multiple network connections and applications. Its built-in 32Kbyte internal memory for TX/RX buffers ensures robust and efficient data handling. The SPI interface facilitates fast data communication and system integration while minimizing the footprint and complexity on host microcontrollers. The W5200 also supports auto-negotiation, ensuring compatibility with different network speeds and conditions.
W5200 Applications
- Smart Home Devices: Enables smart home devices such as security systems and thermostats to connect to the internet for remote monitoring and control.
- Industrial Automation: Facilitates robust network connections in industrial environments, allowing for real-time monitoring and control of industrial equipment.
- Networked Consumer Devices: Integrates into consumer electronics, including gaming consoles and networked entertainment systems, to provide stable and efficient internet connectivity.
- Building Management Systems: Applied in building automation for efficient management and operation of HVAC and lighting systems over the network.
- IoT Devices: Essential for Internet of Things applications that require efficient, reliable internet connectivity to transmit data to the cloud or other devices.
