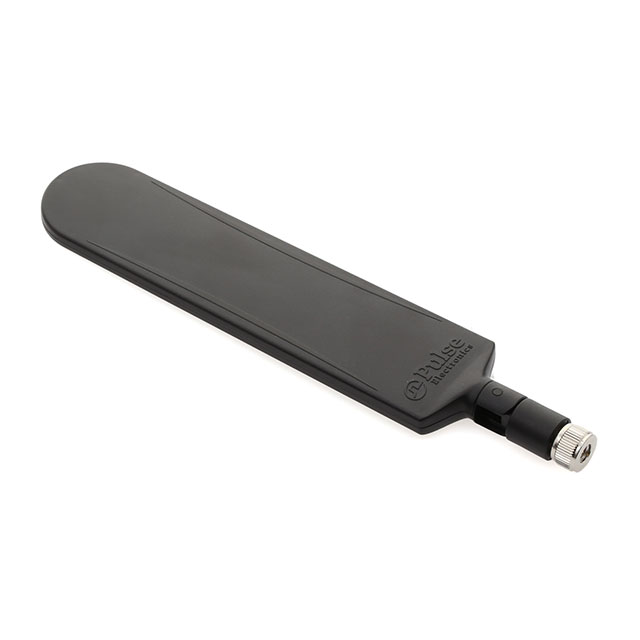

W5084K

Manufacturer :

Pulse Electronics

Product Category :

RF Antennas

Number of Elements per Chip :

1

Width :

41.53 mm

Operating Supply Voltage :

1.8, 2.5, 3.3 V

Operating Temperature :

-40 to 85 °C

VSWR (Max) :

2.5

Antenna Gain :

5DBI(MAX)

Impedance :

50(ohm)

RF Family/Standard :

Cellular

Height (Max) :

9.009 (228.84mm)

Series :

-

IP Rating :

IP65

Termination Style :

Connector

Cable Type :

-

Maximum Operating Temperature :

+ 85 C

Antenna Type :

Blade

Style :

Blade Tilt / Swivel

Operating Temperature Classification :

Industrial

Rad Hardened :

No

Mounting :

Surface Mount

Packaging :

Bag

Minimum Operating Temperature :

- 40 C

Supplier Package :

VFQFPN

Output Frequency Range :

1, 350 MHz

Center Frequency :

750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 3500 MHz, 1575 MHz, 1602 MHz

Number of Bands :

2

Package :

Bulk

Product Category :

Antennas

Termination :

SMA Male

Power Rating :

5 W

Product Status :

Active

Frequency Range :

698MHz ~ 960MHz, 1.4GHz ~ 2.69GHz

Gain :

4DBI

Polarization :

Horizontal

Frequency :

960/2690(MHz)

Features :

-

Mounting Style :

Panel Mount

Operating Temperature (Max) :

85C

Power - Max :

5 W

Product Type :

Multiband Antennas

Return Loss :

-

Frequency (Min) :

698/1400(MHz)

Subcategory :

Antennas

RoHS :

Details

Frequency Group :

Wide Band

Antenna Connector Type :

SMA Male

Mounting Type :

Connector Mount

Pin Count :

24

Product :

Indoor Antennas

Frequency (Center/Band) :

829MHz, 2.05GHz

Maximum Input Power :

5000(mW)

Ingress Protection :

IP65

Application :

Cellular Radio, Gateways, Routers, Set Top Boxes, Security, Metering, IoT Devices, M2M

Brand :

Pulse Electronics

Manufacturer :

Pulse

Screening Level :

Industrial

Applications :

LTE

Operating Temperature (Min) :

-40C

VSWR :

2.5

Length :

223.24 mm

Type :

Programmable PLL Clock Generator
