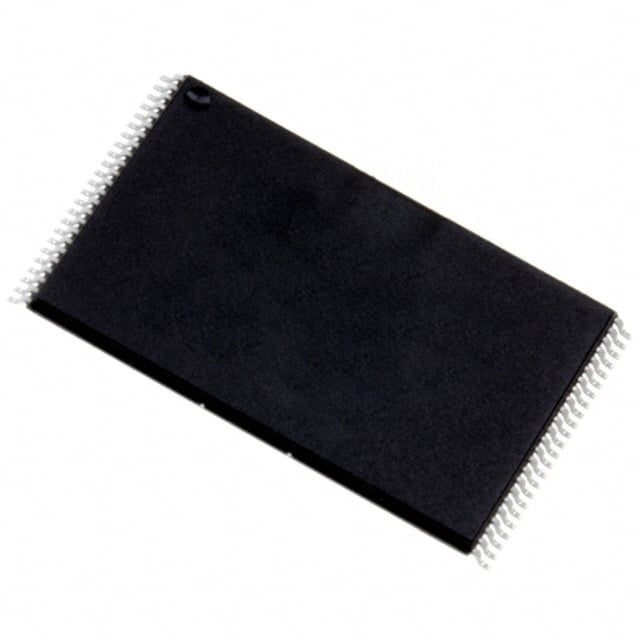

W29GL032CB7S
Or copy the link below:
- Mfr.Part #
- W29GL032CB7S
- Manufacturer
- Winbond Electronics Corporation
- Package / Case
- 48-TFSOP (0.724, 18.40mm Width)
- Datasheet
- Download
- Description
- IC FLASH 32MBIT PARALLEL 48TSOP
- Stock
- 1,615
- In Stock ：
- 1,615
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Winbond Electronics Corporation
- Product Category :
- Memory
- ECCN Code :
- 3A991.B.1.A
- Power Supplies :
- 3/3.3V
- Memory Interface :
- Parallel
- Surface Mount :
- yes
- Terminal Pitch :
- 0.5mm
- Published :
- 2016
- Memory Format :
- Flash
- Supply Voltage-Max (Vsup) :
- 3.6V
- Terminal Position :
- Dual
- Supply Voltage :
- 3V
- Number of Functions :
- 1
- Packaging :
- Tray
- Mounting Type :
- Surface Mount
- Programming Voltage :
- 3V
- Sector Size :
- 8K64K
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Common Flash Interface :
- yes
- Boot Block :
- BOTTOM
- Supply Current-Max :
- 0.055mA
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Memory Density :
- 33554432 bit
- Factory Lead Time :
- 14 Weeks
- Qualification Status :
- Not Qualified
- Toggle Bit :
- yes
- Write Cycle Time - Word, Page :
- 70ns
- Length :
- 18.4mm
- Access Time (Max) :
- 70 ns
- Additional Feature :
- BOTTOM BOOT BLOCK
- Organization :
- 32MX1
- Memory Size :
- 32Mb 4M x 8 2M x 16
- RoHS Status :
- ROHS3 Compliant
- Voltage - Supply :
- 2.7V~3.6V
- Height Seated (Max) :
- 1.2mm
- Command User Interface :
- yes
- JESD-609 Code :
- e3
- Supply Voltage-Min (Vsup) :
- 2.7V
- Package / Case :
- 48-TFSOP (0.724, 18.40mm Width)
- Ready/Busy :
- yes
- Alternate Memory Width :
- 8
- Terminal Finish :
- MATTE TIN
- Pbfree Code :
- yes
- HTS Code :
- 8542.32.00.51
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Pin Count :
- 48
- Width :
- 12mm
- Operating Temperature :
- -40°C~85°C TA
- Data Polling :
- yes
- Standby Current-Max :
- 0.000005A
- Operating Mode :
- ASYNCHRONOUS
- Memory Width :
- 1
- Memory Type :
- Non-Volatile
- JESD-30 Code :
- R-PDSO-G48
- Number of Terminations :
- 48
- Page Size :
- 8/16words
- Number of Sectors/Size :
- 863
- Datasheets
- W29GL032CB7S
Memory Winbond Electronics Corporation W29GL032CB7S Overview
The Memory Winbond Electronics Corporation W29GL032CB7S is a high-performance 32Mbit FLASH memory chip that combines the technological expertise of Winbond Electronics Corporation with the practical needs of modern electronics. Engineered for reliability and high-speed data storage, the W29GL032CB7S utilizes a parallel interface for fast read and write operations. This IC is encased in a 48-pin TSOP package, making it suitable for applications that require compact size without sacrificing performance. The robust design and extended endurance of the W29GL032CB7S make it an excellent choice for developers looking to integrate reliable memory storage into their applications, driving mass purchasing among B2B customers seeking quality and durability.
W29GL032CB7S Features
The W29GL032CB7S boasts a variety of features that make it an attractive choice for high-volume applications. It offers a large 32Mbit storage capacity, a parallel interface for high-speed data transfer, and low power consumption, making it ideal for both portable and stationary technology. The chip's 48TSOP packaging ensures that it can be integrated into tight spaces, thus offering flexibility in design for various industrial applications.
W29GL032CB7S Applications
- Consumer Electronics: Used in devices such as digital cameras and audio players where high-capacity and fast-access memory is crucial.
- Communication Equipment: Employs in modems and routers for storing firmware that can be rapidly updated or modified as technology evolves.
- Automotive Electronics: Integral in car entertainment systems and GPS devices, where durability and reliability are key.
- Industrial Control Systems: Utilized in complex machinery for storing critical operational scripts and automation protocols that enhance industrial efficiency.
- Medical Devices: Applied in medical monitoring systems where accurate data logging of patient information is essential for diagnosis and treatment.
