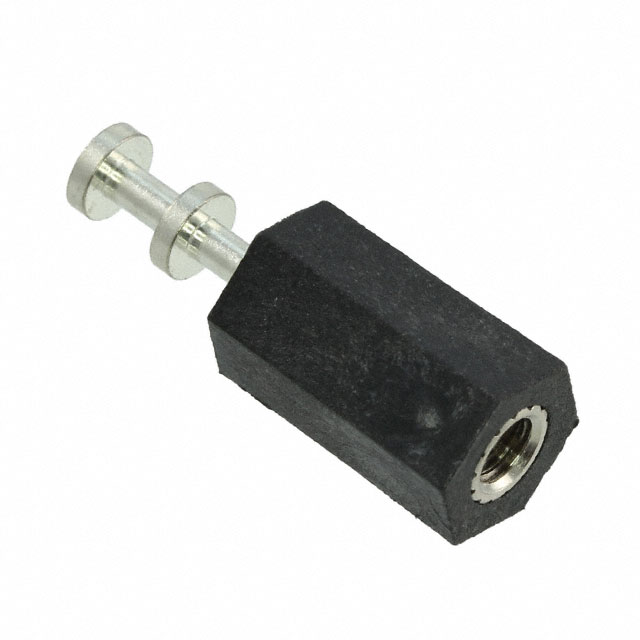

W2331-00

Manufacturer :

Harwin

Product Category :

Turret Connectors

Min Operating Temperature :

-55°C

Max Operating Temperature :

125°C

Length - Above Board :

0.744 ~ 0.764 18.90mm ~ 19.40mm

Mounting Type :

Panel Mount

HTS Code :

8536.90.40.00

Material - Insulation :

Polyamide (PA46), Nylon 4/6

Contact Finish :

Tin

Insulation Color :

Black

Insulation :

Insulated

Length :

19.4056mm

Moisture Sensitivity Level (MSL) :

Not Applicable

Published :

2011

Current Rating :

10A

Contact Material :

Brass

Factory Lead Time :

10 Weeks

Mount :

Panel

Radiation Hardening :

No

Depth :

6.45mm

Terminal Type :

Single End

Terminal and Terminal Block Type :

PCB TERMINAL

Length - Overall :

0.744 ~ 0.764 18.90mm ~ 19.41mm

Termination :

Threaded

Pbfree Code :

yes

Number of Turrets :

Double

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Contact Finish Thickness :

300.0μin 7.62μm

Terminal Gender :

FEMALE

Diameter - Turret Head :

0.136 ~ 0.140 (3.45mm ~ 3.56mm)
