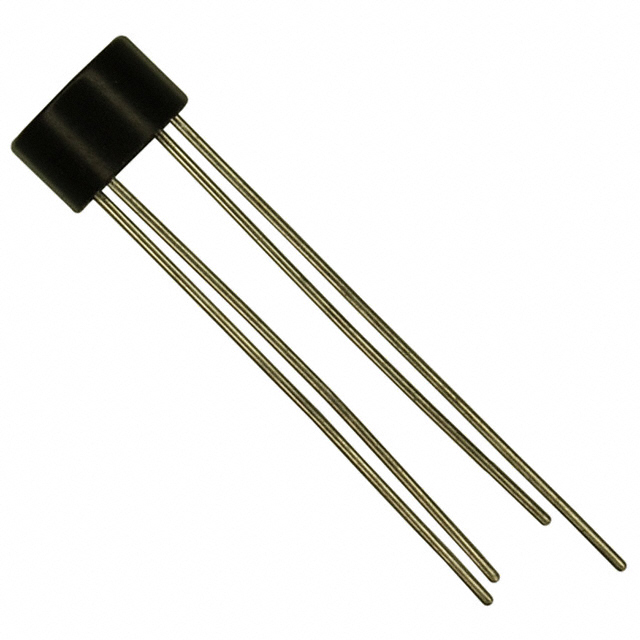

W06M-BP
Or copy the link below:
- Mfr.Part #
- W06M-BP
- Manufacturer
- Micro Commercial Components (MCC)
- Package / Case
- 4-Circular, WOM
- Datasheet
- Download
- Description
- BRIDGE RECT 1PHASE 600V 1.5A WOM
- Stock
- 16,736
- In Stock ：
- 16,736
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Micro Commercial Components (MCC)
- Product Category :
- Diodes - Bridge Rectifiers
- Breakdown Voltage-Min :
- 600V
- Surface Mount :
- No
- Non-rep Pk Forward Current-Max :
- 50A
- Terminal Finish :
- Matte Tin (Sn)
- Current - Reverse Leakage @ Vr :
- 10μA @ 600V
- Terminal Position :
- BOTTOM
- Packaging :
- Bulk
- Pin Count :
- 4
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Operating Temperature :
- -55°C~125°C TJ
- Number of Elements :
- 4
- JESD-609 Code :
- e3
- Number of Terminations :
- 4
- Terminal Form :
- Wire
- Published :
- 1996
- Qualification Status :
- Not Qualified
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Pbfree Code :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Forward (Vf) (Max) @ If :
- 1V @ 1.5A
- Package / Case :
- 4-Circular, WOM
- HTS Code :
- 8541.10.00.80
- ECCN Code :
- EAR99
- Output Current-Max :
- 1.5A
- Number of Phases :
- 1
- RoHS Status :
- RoHS Compliant
- JESD-30 Code :
- O-PBCY-W4
- Diode Element Material :
- SILICON
- Voltage - Peak Reverse (Max) :
- 600V
- Configuration :
- BRIDGE, 4 ELEMENTS
- Mounting Type :
- Through Hole
- Base Part Number :
- W06
- Reach Compliance Code :
- not_compliant
- Additional Feature :
- UL RECOGNIZED
- Diode Type :
- Single Phase
- Current - Average Rectified (Io) :
- 1.5A
- Datasheets
- W06M-BP
W06M-BP Documents
Single Phase Bridge Rectifier Through Hole -55°C~125°C TJ 10μA @ 600V 1V @ 1.5A 4-Termination 1-Phase 4-Circular, WOM Bulk
W06M-BP Overview
Bridge rectifier is equipped wBridge rectifierh 4 pin count.There are a number of related parts that can be identified using the base part number W06.Basically, rectifier is a type of electronic component that is available in a 4-Circular, WOM package.Operating at the temperature of -55°C~125°C TJ ensures its normal operation.The maximum output voltage of 1.5A can be supported by it.
W06M-BP Features
4 pin count
4-Circular, WOM package
operating at a temperature of -55°C~125°C TJ
the maximum output voltage of 1.5A
W06M-BP Applications
There are a lot of Micro Commercial Co
W06M-BP applications of bridge rectifiers.
- Controlled avalanche characteristics
- Working peak reverse voltages 200 to 1 ,000 volts
- Military and other high-reliability applications
- High forward surge current capability
- Low thermal resistance
- Extremely robust construction
- Fuse-in-glass diodes design
- Electrically isolated aluminum case
- Motor controls – Low Voltage and Medium Voltage converters
- SCR power bridges for solid state starters
