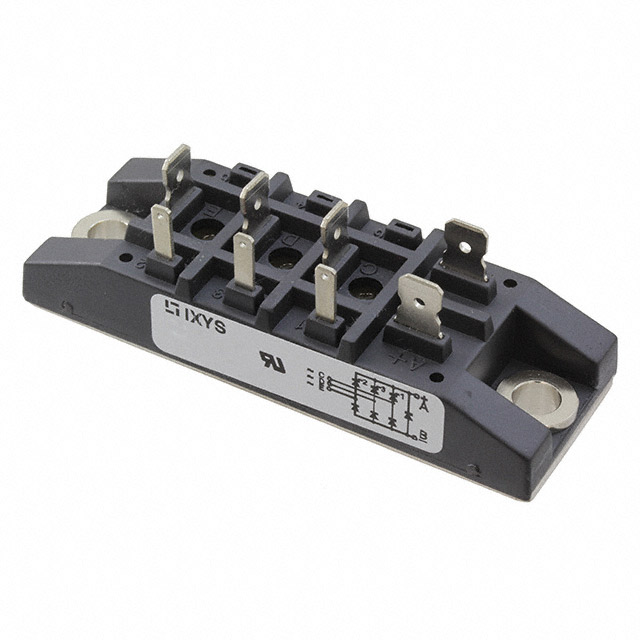

VVZF70-16IO7
- Mfr.Part #
- VVZF70-16IO7
- Manufacturer
- Littelfuse
- Package / Case
- FO-T-A
- Datasheet
- Download
- Description
- RECT BRIDGE 3PH 1600V FO-T-A
- Stock
- 19,931
- In Stock :
- 19,931
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Littelfuse
- Product Category :
- Thyristors - SCRs - Modules
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Qualification Status :
- Not Qualified
- Technology :
- Si
- Max Repetitive Reverse Voltage (Vrrm) :
- 1.6kV
- On-State Current-Max :
- 70000A
- Current Rating :
- 70A
- JESD-609 Code :
- e4
- Terminal Form :
- Solder Lug
- Current - On State (It (AV)) (Max) :
- 70A
- DC Gate Trigger Voltage-Max :
- 1.5 V
- Product Category :
- SCR Modules
- Product Type :
- SCR Modules
- Max Operating Temperature :
- 125 °C
- Peak Reverse Current :
- 5mA
- Voltage - Gate Trigger (Vgt) (Max) :
- 1.5V
- Repetitive Peak Off-state Voltage :
- 1600V
- Surface Mount :
- No
- Min Operating Temperature :
- -40 °C
- Package Shape :
- RECTANGULAR
- Product Status :
- Obsolete
- Repetitive Peak Reverse Voltage :
- 1.6kV
- Desc. of Screw Terminals :
- 0
- Published :
- 1999
- Mount :
- Chassis Mount, Screw
- Package / Case :
- FO-T-A
- Configuration :
- 3 PHASE BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN FREE-WHEELING DIODE
- Number of Elements :
- 3
- Mounting Style :
- Screw Mount
- Pbfree Code :
- yes
- Number of Terminations :
- 11
- RoHS Status :
- ROHS3 Compliant
- Minimum Operating Temperature :
- - 40 C
- Additional Feature :
- Fast
- Manufacturer :
- IXYS
- Voltage - Off State :
- 1.6kV
- Operating Temperature :
- -40°C~125°C TJ
- JESD-30 Code :
- R-XUFM-D11
- Factory Lead Time :
- 16 Weeks
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Average Rectified Current :
- 70A
- HTS Code :
- 8541.30.00.80
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Terminal Finish :
- Gold (Au) - with Nickel (Ni) barrier
- Maximum Operating Temperature :
- + 125 C
- Packaging :
- Bulk
- Number of Pins :
- 8
- Circuit Type :
- SCR
- Trigger Device Type :
- SCR
- Current - Non Rep. Surge 50, 60Hz (Itsm) :
- 550A 600A
- Case Connection :
- Isolated
- Mounting Type :
- Chassis Mount
- Series :
- --
- Structure :
- Bridge, 3-Phase - SCRs/Diodes
- Brand :
- IXYS
- Hold Current :
- 200mA
- Reach Compliance Code :
- Unknown
- Base Part Number :
- VVZF
- Number of Terminals :
- 11
- Lead Free :
- Lead Free
- Holding Current-Max :
- 200 mA
- Base Product Number :
- VVZF
- RMS On-state Current-Max :
- 36A
- Desc. of Quick-Connects :
- 3AK-CA-CK
- Current - Hold (Ih) (Max) :
- 200mA
- Current - Gate Trigger (Igt) (Max) :
- 100mA
- DC Gate Trigger Current-Max :
- 100 mA
- Package :
- Bulk
- Number of SCRs, Diodes :
- 3 SCRs, 3 Diodes
- Terminal Position :
- UPPER
- Non-Repetitive Pk On-state Cur :
- 550 A
- RoHS :
- Compliant
- Datasheets
- VVZF70-16IO7
