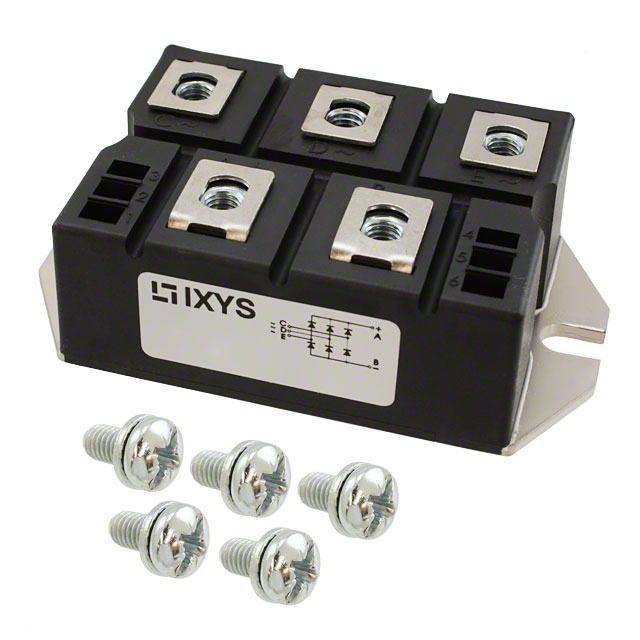

VUO190-18NO7

Manufacturer :

Littelfuse

Product Category :

Diodes - Bridge Rectifiers

Width :

54mm

Diode Element Material :

SILICON

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Voltage - Forward (Vf) (Max) @ If :

1.07V @ 80A

Operating Temperature :

-40°C~150°C TJ

Number of Pins :

5

Product Status :

Active

Terminal Position :

UPPER

Product Type :

Bridge Rectifiers

Pin Count :

5

Voltage - Peak Reverse (Max) :

1.8kV

Power Dissipation :

310W

Manufacturer :

IXYS

Factory Lead Time :

16 Weeks

Packaging :

Bulk

Type :

Three Phase Bridge

Forward Voltage :

1.36V

Maximum Operating Temperature :

+ 150 C

Minimum Operating Temperature :

- 40 C

Brand :

IXYS

Number of Phases :

3

Published :

2012

Current - Average Rectified (Io) :

248A

Peak Non-Repetitive Surge Current :

3.3kA

Configuration :

BRIDGE, 6 ELEMENTS

Supplier Device Package :

PWS-E1

Diode Type :

Three Phase

Product Category :

Bridge Rectifiers

Vf - Forward Voltage :

0.96 V

Pbfree Code :

yes

Package / Case :

PWS-E1

Mount :

Chassis Mount, Screw

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Case Connection :

Isolated

Max Surge Current :

2.8kA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Max Reverse Leakage Current :

3.5mA

Height :

30mm

Mounting Style :

Screw Mount

Qualification Status :

Not Qualified

Package :

Bulk

Additional Feature :

UL RECOGNIZED

Series :

--

Base Product Number :

VUO190

Average Rectified Current :

248A

Base Part Number :

VUO190

Number of Elements :

1

Current - Reverse Leakage @ Vr :

200μA @ 1800V

Mounting Type :

Chassis Mount

Terminal Form :

UNSPECIFIED

RoHS :

Details

Number of Terminations :

5

Length :

94mm
