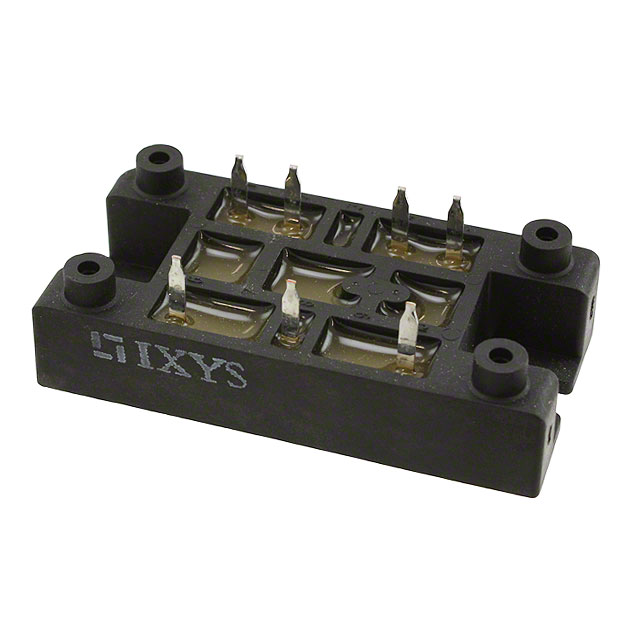

VUB72-16NO1

Manufacturer :

Littelfuse

Product Category :

Diodes - Bridge Rectifiers

Supplier Device Package :

V1-A

Qualification Status :

Not Qualified

Terminal Form :

UNSPECIFIED

Case Connection :

Isolated

Packaging :

Bulk

Series :

-

Turn Off Time-Nom (toff) :

490 ns

Collector Current-Max (IC) :

50A

Current - Average Rectified (Io) :

110 A

Peak Reverse Current :

20μA

Operating Temperature :

-40°C~150°C TJ

Turn On Time :

130 ns

Average Rectified Current :

110A

Terminal Position :

UPPER

RoHS Status :

RoHS Compliant

Base Product Number :

VUB

Package / Case :

V1-A

Configuration :

SINGLE WITH BUILT-IN DIODE, THREE PHASE DIODE BRIDGE AND THERMISTOR

Current - Reverse Leakage @ Vr :

20μA @ 1600V

Max Repetitive Reverse Voltage (Vrrm) :

1.6kV

Width :

31.6mm

Voltage - Peak Reverse (Max) :

1.6 kV

Voltage - Forward (Vf) (Max) @ If :

1.1V @ 25A

Number of Pins :

8

Height :

17mm

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Number of Terminals :

8

Collector-Emitter Voltage-Max :

1200 V

Base Part Number :

VUB

Number of Elements :

1

Package :

Bulk

Mount :

Chassis Mount, Screw

JESD-609 Code :

e1

Product Status :

Obsolete

Package Shape :

RECTANGULAR

Reach Compliance Code :

Compliant

Mounting Type :

Chassis Mount

Transistor Element Material :

SILICON

Forward Voltage :

1.1V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Transistor Application :

POWER CONTROL

Max Surge Current :

530A

Factory Lead Time :

8 Weeks

Published :

2003

Manufacturer :

IXYS

Length :

63mm

Peak Non-Repetitive Surge Current :

530A

Max Reverse Leakage Current :

20μA

JESD-30 Code :

R-XUFM-X8

Polarity/Channel Type :

N-Channel

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Surface Mount :

No

Diode Type :

Three Phase (Braking)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

High Reliability

Lead Free :

Lead Free

Number of Terminations :

8
