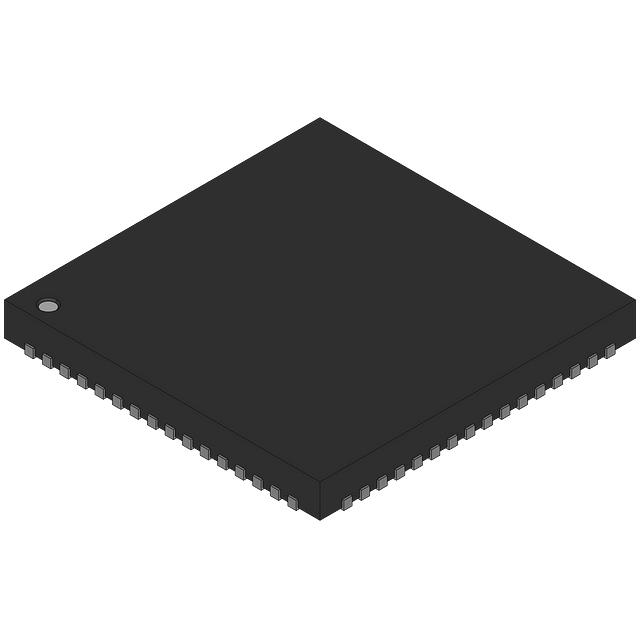

VSP5324TRGCRQ1

Manufacturer :

Texas Instruments

Product Category :

Analog to Digital Converters (ADC)

Number of Bits :

12

Pbfree Code :

yes

Series :

Automotive, AEC-Q100

Voltage - Supply, Digital :

1.7V~1.9V

Voltage - Supply, Analog :

1.7V~1.9V

Terminal Position :

QUAD

Terminal Pitch :

0.5mm

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Surface Mount :

yes

Terminal Form :

NO LEAD

Number of Pins :

64

Sampling Rate (Per Second) :

80m

Width :

9mm

Data Interface :

LVDS - Serial

Length :

9mm

Number of Analog In Channels :

4

Configuration :

ADC

Number of Terminations :

64

Packaging :

Tape and Reel (TR)

Operating Temperature :

-40°C~105°C

Sampling Rate :

80 MHz

Sample and Hold / Track and Hold :

SAMPLE

ECCN Code :

EAR99

Package / Case :

64-VFQFN Exposed Pad

Number of Functions :

1

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Height :

1mm

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Base Part Number :

VSP5324

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Reference Type :

External, Internal

RoHS Status :

ROHS3 Compliant

Input Type :

Differential, Single Ended

Analog Input Voltage-Min :

-2V

Supply Voltage :

1.8V

Mounting Type :

Surface Mount

Factory Lead Time :

6 Weeks

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Number of Inputs :

4

Thickness :

880μm

JESD-609 Code :

e4

Analog Input Voltage-Max :

2V

Output Bit Code :

OFFSET BINARY, 2'S COMPLEMENT BINARY

Output Format :

SERIAL, PARALLEL, WORD
