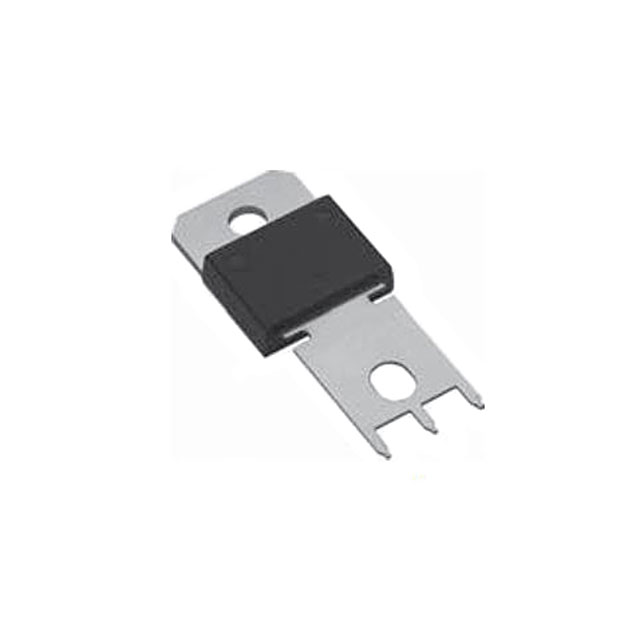

VS-150EBU02

Manufacturer :

Vishay

Product Category :

Diodes - Rectifiers - Single

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Element Configuration :

Single

Voltage - DC Reverse (Vr) (Max) :

200V

Max Reverse Voltage (DC) :

200V

Radiation Hardening :

No

Current - Reverse Leakage @ Vr :

50μA @ 200V

Max Surge Current :

1.6kA

Published :

2011

Average Rectified Current :

150A

Height :

4.95mm

Forward Current :

150A

Peak Non-Repetitive Surge Current :

1.6kA

Max Forward Surge Current (Ifsm) :

1.6kA

Diode Type :

Standard

Series :

FRED Pt®

Number of Pins :

2

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Min Operating Temperature :

-55°C

Recovery Time :

45 ns

Natural Thermal Resistance :

0.2 °C/W

Reverse Voltage :

200V

Package / Case :

PowerTab™, PowIRtab™

Voltage - Forward (Vf) (Max) @ If :

1.13V @ 150A

Length :

15.9mm

RoHS Status :

ROHS3 Compliant

Peak Reverse Current :

50μA

Forward Voltage :

1.13V

Max Operating Temperature :

175°C

Mount :

Panel, Radial, Screw, Through Hole

Packaging :

Bulk

Reverse Recovery Time :

45 ns

Current - Average Rectified (Io) :

150A

Factory Lead Time :

14 Weeks

Operating Temperature - Junction :

-55°C~175°C

Supplier Device Package :

PowIRtab™

Width :

12.4mm

Max Repetitive Reverse Voltage (Vrrm) :

200V
