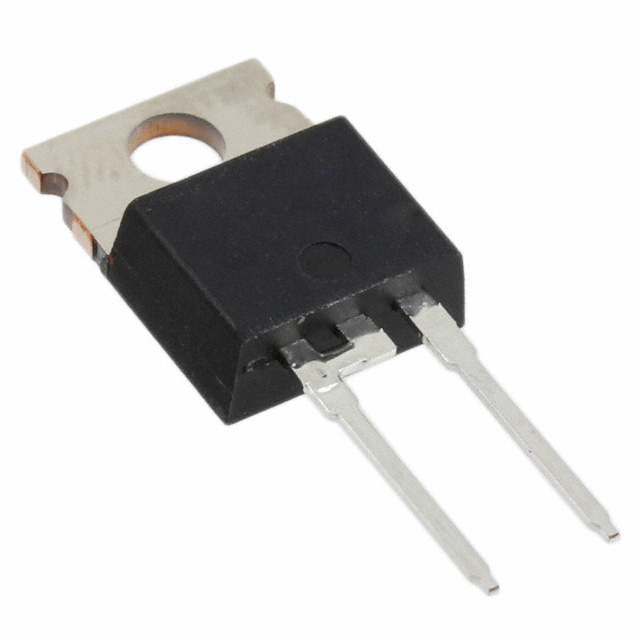

VS-10TQ040PBF

Manufacturer :

Vishay

Product Category :

Diodes - Rectifiers - Single

Max Surge Current :

810A

Element Configuration :

Single

Peak Reverse Current :

2mA

Max Operating Temperature :

175°C

Number of Pins :

2

RoHS Status :

ROHS3 Compliant

Radiation Hardening :

No

Height :

9.02mm

Number of Elements :

1

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Length :

10.67mm

Operating Temperature - Junction :

-55°C~175°C

Average Rectified Current :

10A

Max Repetitive Reverse Voltage (Vrrm) :

40V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Diode Type :

Schottky

Factory Lead Time :

11 Weeks

Max Forward Surge Current (Ifsm) :

810A

Max Reverse Voltage (DC) :

40V

Forward Current :

10A

Forward Voltage :

670mV

Voltage - Forward (Vf) (Max) @ If :

760mV @ 10A

Diode Element Material :

SILICON

Additional Feature :

FREE WHEELING DIODE

Number of Terminations :

2

Current - Reverse Leakage @ Vr :

6mA @ 40V

Application :

GENERAL PURPOSE

ECCN Code :

EAR99

Min Operating Temperature :

-55°C

Peak Non-Repetitive Surge Current :

1.05kA

Width :

4.83mm

Number of Phases :

1

Mounting Type :

Through Hole

JESD-609 Code :

e3

Packaging :

Tube

Natural Thermal Resistance :

2 °C/W

Max Reverse Leakage Current :

800μA

Terminal Finish :

MATTE TIN OVER NICKEL

Package / Case :

TO-220-2

Published :

2006

Mount :

Through Hole

Case Connection :

CATHODE
