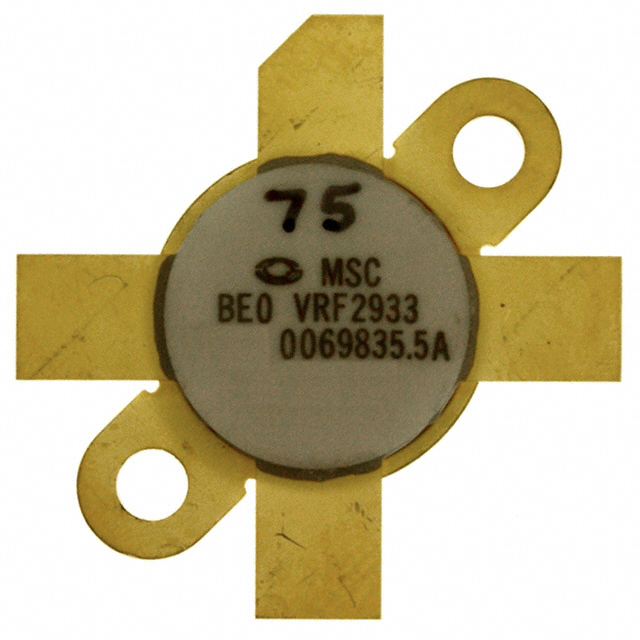

VRF2933

Manufacturer :

Microchip Technology

Product Category :

Transistors - FETs, MOSFETs - RF

Configuration :

Single

JESD-30 Code :

O-CRFM-F4

Number of Elements :

1

Voltage - Test :

50V

Current Rating :

40A

Drain to Source Voltage (Vdss) :

180V

Continuous Drain Current (ID) :

40A

Current - Test :

250mA

Power - Output :

300W

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Form :

Flat

Packaging :

Bulk

Voltage - Rated :

170V

Factory Lead Time :

28 Weeks

Max Operating Temperature :

200°C

Mount :

Screw

Lifecycle Status :

IN PRODUCTION (Last Updated: 1 month ago)

Case Connection :

SOURCE

Terminal Position :

Radial

RoHS Status :

RoHS Compliant

Number of Terminations :

4

Radiation Hardening :

No

Frequency :

150MHz

Lead Free :

Lead Free

Current Rating (Amps) :

2mA

Operating Mode :

ENHANCEMENT MODE

Transistor Type :

N-Channel

Transistor Application :

AMPLIFIER

Gain :

25dB

Package / Case :

M177

Min Operating Temperature :

-65°C

Gate to Source Voltage (Vgs) :

40V

Number of Pins :

5

ECCN Code :

EAR99

Max Power Dissipation :

648W
