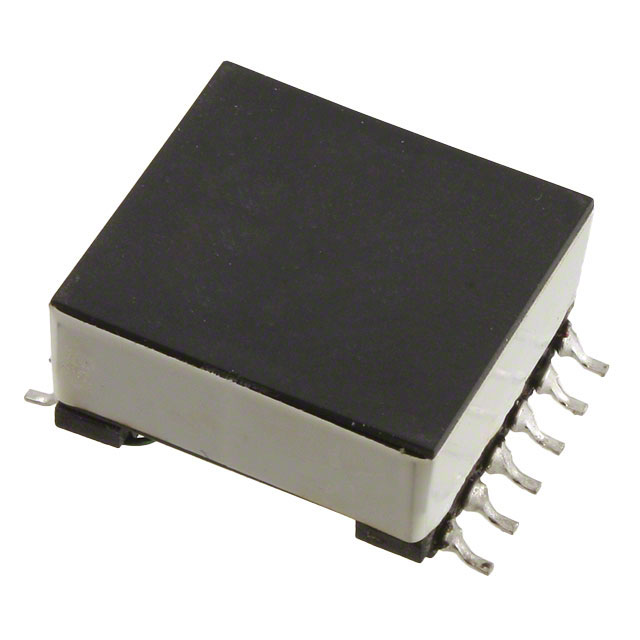

VPH5-0155TR-R
Or copy the link below:
- Mfr.Part #
- VPH5-0155TR-R
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- PULSE XFMR 22.3UH SMD
- Stock
- 382
- In Stock ：
- 382
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Switching Converter, SMPS Transformers
- Saturation Current :
- 1.05A
- Radiation Hardening :
- No
- Mounting Type :
- Surface Mount
- Depth :
- 28.5mm
- Packaging :
- Tape and Reel (TR)
- Published :
- 2007
- Height Seated (Max) :
- 0.425 10.80mm
- DC Resistance (DCR) :
- 71.1mOhm
- Series :
- VERSA-PAC®
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Military Standard :
- Not
- Shielding :
- Unshielded
- Package / Case :
- Nonstandard
- Tolerance :
- 20%
- RoHS Status :
- RoHS Compliant
- Weight :
- 18.143695g
- Core Material :
- Ferrite
- Inductance :
- 22.3μH
- Current :
- 1.7A
- Number of Pins :
- 12
- Manufacturer Package Identifier :
- VPH5-0155TR-R
- RMS Current (Irms) :
- 1.7A
- Size / Dimension :
- 0.827Lx1.122W 21.00mmx28.50mm
- Series Resistance :
- 71.1mOhm
- ET (Volt-Time) :
- 98.4VμS
- Max DC Current :
- 1.05A
- Lead Free :
- Lead Free
- Width :
- 21mm
- Height :
- 10.8mm
- Length :
- 21mm
- Inductance - Series :
- 406.8 μH
- Transformer Type :
- GENERAL PURPOSE
- Number of Coils :
- 6
- Min Operating Temperature :
- -40°C
- Operating Temperature :
- -40°C~125°C
- Mount :
- Surface Mount
- Max Operating Temperature :
- 125°C
- Factory Lead Time :
- 15 Weeks
- Inductance - Parallel :
- 11.3 µH
- Termination :
- SMD/SMT
- Datasheets
- VPH5-0155TR-R
