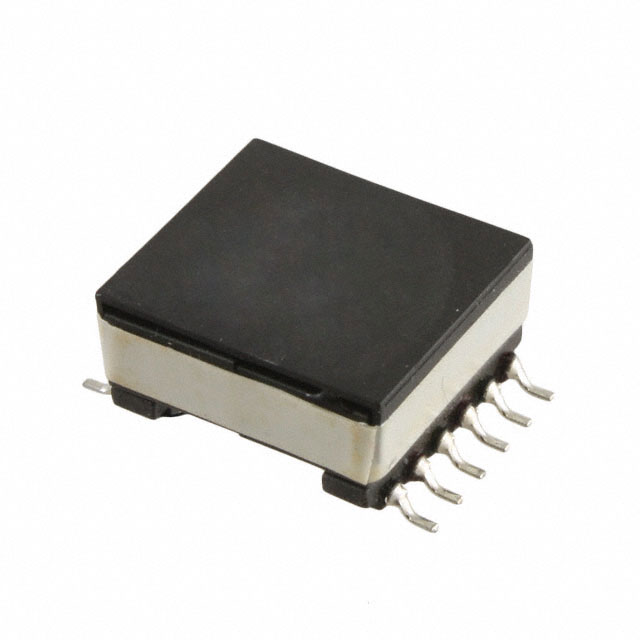

VPH4-0140-R
Or copy the link below:
- Mfr.Part #
- VPH4-0140-R
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- PULSE XFMR 23.7UH SMD
- Stock
- 19
- In Stock ：
- 19
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Switching Converter, SMPS Transformers
- Height Seated (Max) :
- 0.394 10.00mm
- Mount :
- Surface Mount
- Weight :
- 9.52544g
- Package / Case :
- SMD/SMT
- Size / Dimension :
- 0.709Lx0.969W 18.00mmx24.60mm
- Type :
- GENERAL PURPOSE
- Tolerance :
- 20%
- Lead Free :
- Lead Free
- Mounting Type :
- Surface Mount
- Inductance - Series :
- 853.2 μH
- Max DC Current :
- 650mA
- Width :
- 24.6126mm
- DC Resistance (DCR) :
- 82.8mOhm
- Termination :
- SMD/SMT
- Core Material :
- Ferrite
- Operating Temperature :
- -40°C~125°C
- Factory Lead Time :
- 15 Weeks
- Radiation Hardening :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 3.9A
- Number of Pins :
- 12
- Shielding :
- Unshielded
- Packaging :
- Bulk
- Inductance - Parallel :
- 23.7 µH
- Published :
- 2007
- Military Standard :
- Not
- Depth :
- 24.6mm
- Transformer Type :
- GENERAL PURPOSE
- Height :
- 10mm
- Current :
- 1.41A
- RoHS Status :
- RoHS Compliant
- Number of Coils :
- 6
- Turns Ratio - Primary:Secondary :
- 1:1
- Min Operating Temperature :
- -40°C
- ET (Volt-Time) :
- 64.6VμS
- Inductance :
- 23.7μH
- Max Operating Temperature :
- 85°C
- Series :
- VERSA-PAC®
- Length :
- 18mm
- Datasheets
- VPH4-0140-R
