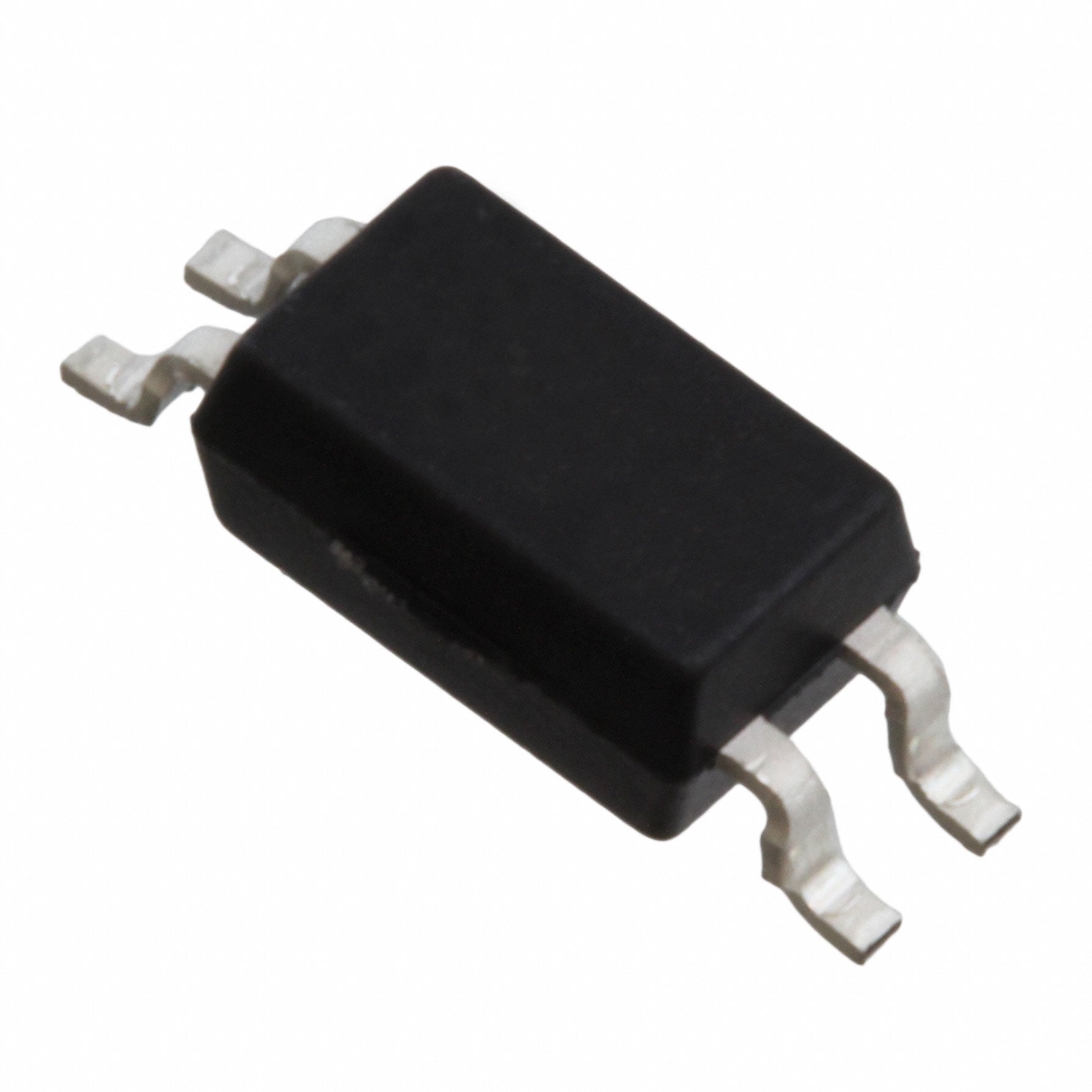

VOS618A-8T

Manufacturer :

Vishay

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Max Input Current :

50mA

Reach Compliance Code :

Unknown

Mount :

Surface Mount

Package / Case :

4-SOIC (0.173, 4.40mm Width)

Input Type :

DC

Reverse Breakdown Voltage :

6V

Output Type :

Transistor

Mounting Type :

Surface Mount

Max Collector Current :

50mA

Voltage - Output (Max) :

80V

Turn On / Turn Off Time (Typ) :

5µs, 8µs

Factory Lead Time :

11 Weeks

Collector Emitter Saturation Voltage :

400mV

Current Transfer Ratio (Min) :

130% @ 1mA

ECCN Code :

EAR99

Current Transfer Ratio (Max) :

260% @ 1mA

Operating Temperature :

-55°C~110°C

Configuration :

Single

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Rise Time :

10μs

Number of Channels :

1

Rise / Fall Time (Typ) :

5μs 7μs

Max Power Dissipation :

170mW

Pbfree Code :

yes

Power Dissipation :

170mW

Number of Elements :

1

Published :

2017

Additional Feature :

UL RECOGNIZED

RoHS Status :

ROHS3 Compliant

Reverse Voltage (DC) :

6V

Voltage - Isolation :

3750Vrms

Collector Emitter Voltage (VCEO) :

80V

Packaging :

Tape and Reel (TR)

Voltage - Forward (Vf) (Typ) :

1.1V

Fall Time (Typ) :

11 μs

Forward Current :

50mA

Number of Pins :

4
