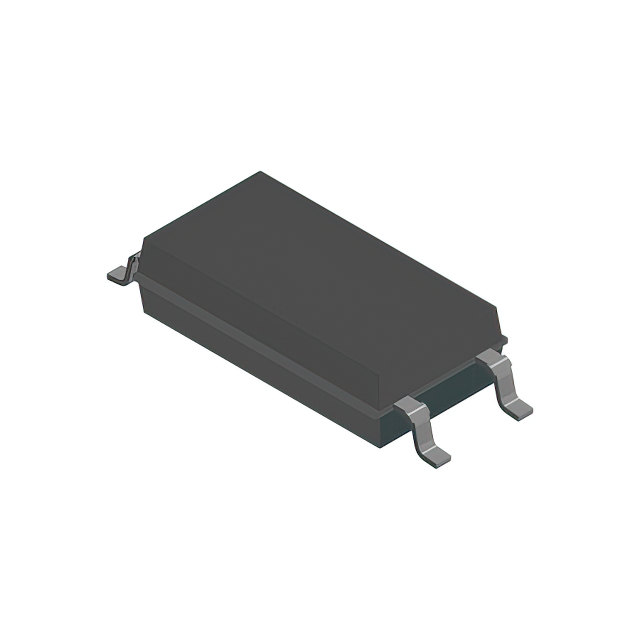

VOL618AT

Manufacturer :

Vishay

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Package :

Digi-Reel?

Series :

VOL618A

Product Category :

Transistor Output Optocouplers

Minimum Operating Temperature :

- 55 C

Voltage - Output (Max) :

80V

Current - Output / Channel :

50mA

Manufacturer :

Vishay

Rise Time :

3.5 us

Voltage - Forward (Vf) (Typ) :

1.16V

Rise / Fall Time (Typ) :

3.5µs, 5µs

Operating Temperature :

-55°C ~ 110°C

ECCN Code :

EAR99

Isolation Voltage :

5000 Vrms

Output Type :

Transistor

Vf - Forward Voltage :

1.5 V

HTS Code :

8541.40.80.00

Current Transfer Ratio (Min) :

50% @ 1mA

RoHS :

Details

Reach Compliance Code :

Unknown

Mounting Style :

SMD/SMT

Vce Saturation (Max) :

400mV

Mounting Type :

Surface Mount

Brand :

Vishay Semiconductors

Voltage - Isolation :

5000Vrms

Maximum Operating Temperature :

+ 110 C

Current Transfer Ratio :

50 %

Input Type :

DC

Package / Case :

DO-214AB, SMC

Subcategory :

Optocouplers

Optoelectronic Device Type :

TRANSISTOR OUTPUT OPTOCOUPLER

Turn On / Turn Off Time (Typ) :

6µs, 5.5µs

Current Transfer Ratio (Max) :

600% @ 1mA

Product Status :

Active

Product Type :

Transistor Output Optocouplers

Supplier Device Package :

DO-214AB (SMC)

Number of Channels :

1

Packaging :

Cut Tape

Current - DC Forward (If) (Max) :

60 mA
