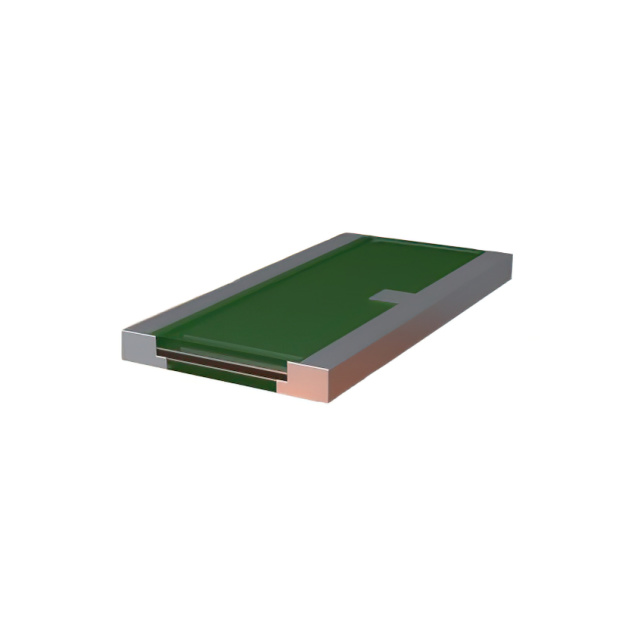

VMP-R010-1.0-U

Manufacturer :

Isabellenhütte

Product Category :

Chip Resistor - Surface Mount

Size Code :

2010

Package Height :

0.4 mm

Ratings :

AEC-Q200

Construction :

Chip

Number of Terminals :

2

Technology :

Metal Alloy

Package Shape :

RECTANGULAR PACKAGE

Power (Watts) :

3W

Package Width :

2.54 mm

Resistor Type :

FIXED RESISTOR

Height - Seated (Max) :

0.022 (0.55mm)

Resistance :

10 MOhms

Rated Temperature :

70 °C

Number of Terminations :

2

Product Status :

Active

Surface Mount :

yes

Mounting Feature :

Surface Mount

Rated Power Dissipation (P) :

3 W

Failure Rate :

-

Reference Standard :

AEC-Q200

Reach Compliance Code :

Compliant

Supplier Device Package :

2010

Terminal Shape :

WRAPAROUND

Size / Dimension :

0.200 L x 0.100 W (5.08mm x 2.54mm)

Additional Feature :

PRECISION

Subcategory :

FIXED RESISTOR

Package / Case :

2010 (5025 Metric)

Packing Method :

TR, 13 INCH

Package Length :

5.08 mm

Tolerance :

±1%

Temperature Coefficient :

±20ppm/°C

Composition :

-

Operating Temperature :

-65°C ~ 170°C

Manufacturer :

Isabellenhuette

Features :

Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
