VIPER28HE
Or copy the link below:
- Mfr.Part #
- VIPER28HE
- Manufacturer
- STMicroelectronics
- Package / Case
- 10-SDIP (0.300, 7.62mm)
- Datasheet
- Download
- Description

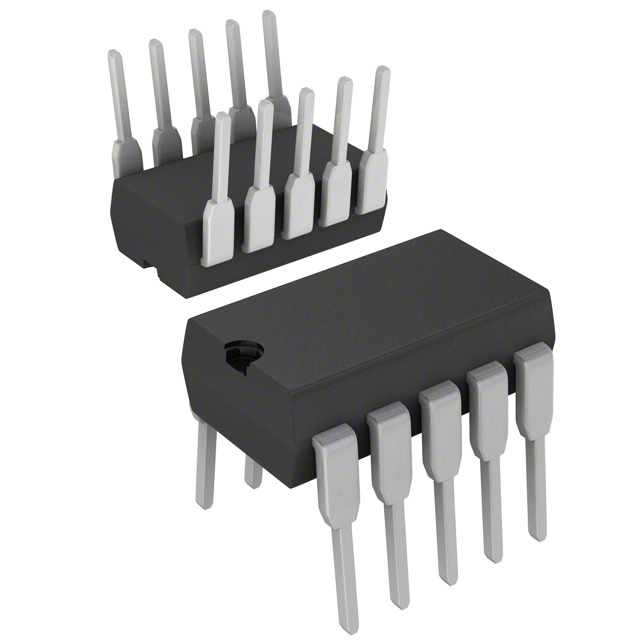

- IC OFFLINE SWITCH FLYBACK 10DIP
- Stock
- 31,905
- In Stock ：
- 31,905
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- STMicroelectronics
- Product Category :
- AC DC Converters, Offline Switches
- Base Part Number :
- VIPER28
- Mounting Type :
- Through Hole
- Number of Outputs :
- 1
- Power (Watts) :
- 16W
- Series :
- VIPer™ plus
- Number of Pins :
- 10
- Voltage - Start Up :
- 14V
- Max Power Dissipation :
- 20W
- ECCN Code :
- EAR99
- Fault Protection :
- Current Limiting, Over Temperature, Over Voltage, Short Circuit
- Analog IC - Other Type :
- SWITCHING CONTROLLER
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Input Voltage-Nom :
- 14V
- Input Voltage (Max) :
- 23.5V
- Pin Count :
- 10
- Voltage - Supply (Vcc/Vdd) :
- 8.5V~23.5V
- Height Seated (Max) :
- 5.33mm
- Output Power :
- 20W
- Width :
- 7.62mm
- Output Voltage :
- 800V
- Length :
- 10.16mm
- Operating Supply Current :
- 2.5mA
- Number of Functions :
- 1
- Qualification Status :
- Not Qualified
- Max Supply Current :
- 3.5mA
- Package / Case :
- 10-SDIP (0.300, 7.62mm)
- Max Duty Cycle :
- 80 %
- Control Mode :
- CURRENT-MODE
- Operating Temperature :
- -40°C~150°C TJ
- RoHS Status :
- ROHS3 Compliant
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Topology :
- Flyback
- Control Technique :
- PULSE WIDTH MODULATION
- Output Current :
- 1.2A
- Packaging :
- Tube
- Internal Switch(s) :
- yes
- Terminal Position :
- Dual
- Number of Terminations :
- 10
- Switcher Configuration :
- Single
- Output Isolation :
- Isolated
- Mount :
- Through Hole
- Lead Free :
- Lead Free
- Input Voltage (Min) :
- 8.5V
- Frequency - Switching :
- 115kHz
- Datasheets
- VIPER28HE
AC DC Converters, Offline Switches STMicroelectronics VIPER28HE Overview
The STMicroelectronics VIPER28HE represents a cutting-edge solution in the realm of AC DC Converters and Offline Switches. This high-efficiency Integrated Circuit (IC) is designed to optimize power conversion in flyback topologies, offering superior performance in a compact 10DIP package. Tailored for engineers and product developers needing reliable and robust power solutions, the VIPER28HE enhances system reliability and simplifies design processes. Its ability to handle fluctuating input voltages while maintaining stable output makes it a preferred choice for various industrial applications, ensuring efficient energy conversion and power supply stability.
