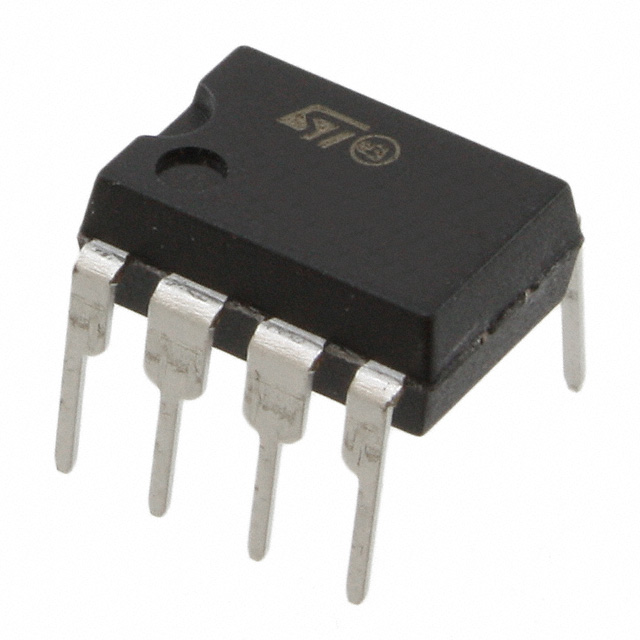

VIPER06LN

Manufacturer :

STMicroelectronics

Product Category :

AC DC Converters, Offline Switches

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Max Duty Cycle :

80 %

Voltage - Breakdown :

800V

Weight :

850.995985mg

Base Part Number :

VIPER06

ECCN Code :

EAR99

Package / Case :

8-DIP (0.300, 7.62mm), 7 Leads

Input Voltage (Max) :

23.5V

Surface Mount :

No

Mounting Type :

Through Hole

Series :

VIPer™ plus

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Duty Cycle :

70%

Operating Temperature :

-40°C~150°C TJ

Fault Protection :

Current Limiting, Open Loop, Over Temperature

Voltage - Supply (Vcc/Vdd) :

11.5V~23.5V

Output Power :

30mW

Number of Outputs :

1

Output Isolation :

Either

Analog IC - Other Type :

SWITCHING REGULATOR

Internal Switch(s) :

yes

Operating Supply Current :

1.45mA

RoHS Status :

ROHS3 Compliant

Number of Pins :

7

Lifecycle Status :

ACTIVE (Last Updated: 6 months ago)

Packaging :

Tube

Topology :

Buck, Flyback

Voltage - Start Up :

13V

Frequency - Switching :

60kHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Functions :

1

Lead Free :

Lead Free

Power Rating :

4W

Terminal Pitch :

2.54mm

Qualification Status :

Not Qualified

Max Power Dissipation :

8W

Terminal Position :

Dual

Height Seated (Max) :

5.33mm

Factory Lead Time :

12 Weeks

Control Technique :

PULSE WIDTH MODULATION

Number of Terminations :

7

Control Mode :

CURRENT-MODE

Input Voltage-Nom :

14V
