VF401
Or copy the link below:
- Mfr.Part #
- VF401
- Manufacturer
- Honeywell Sensing and Productivity Solutions
- Package / Case
- Radial
- Datasheet
- Download
- Description
- MAGNETIC SWITCH SPEC PURP RADIAL
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Honeywell Sensing and Productivity Solutions
- Product Category :
- Magnetic Sensors - Switches (Solid State)
- Surface Mount :
- No
- Mounting Type :
- Through Hole
- Housing :
- Plastic
- Bandwidth :
- 3 kHz
- Package / Case :
- Radial
- Factory Lead Time :
- 5 Weeks
- Switching Frequency :
- 3kHz
- Function :
- Special Purpose
- Nominal Supply Current :
- 8.4mA
- Published :
- 2001
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- REACH SVHC :
- Unknown
- Number of Pins :
- 2
- Operating Temperature :
- -40°C~150°C TA
- Voltage - Supply :
- 4.5V~16V
- Output Type :
- Open Collector
- Output Current :
- 18mA
- Length :
- 4.06mm
- Type :
- Integrated Circuit (IC)
- Operating Supply Current :
- 16.8mA
- Packaging :
- Bulk
- Depth :
- 1.57mm
- RoHS Status :
- RoHS Compliant
- Operating Supply Voltage :
- 16V
- Width :
- 3mm
- Datasheets
- VF401
Open Collector 4.5V~16V -40°C~150°C TA Special Purpose Radial

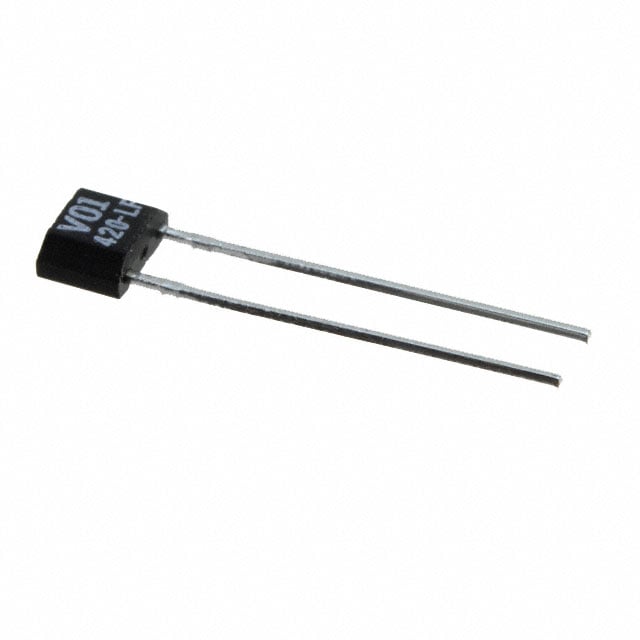

VF401 Description
The VF401 is a high-performance, digital, 2-wire, MR(magnetoresistive) sensor in a miniature, flat, TO-92-style, plastic package with a current output, designed for sensing fine pitch ring magnets. The unique VF401 bridge array (patent number 6,297,628) has been optimized to allow a greater air gap between the target and the sensor with reduced loss in sensor signal or accuracy.
VF401 Features
Robust design operating from -40 °C to 150 °C [-40 °F to 302 °F] can withstand short durations up to 175 °C [347 °F],
allowing use in potential applications with extreme temperature requirements.
Not damaged by reverse polarity voltages when customer-supplied sense resistor is installed, enhancing protection.
Patented MR bridge optimized for stable sensing of 20- to 50-pole pair ring magnets with improved insensitivity to runout, tilt, and twist.
2-wire digital current output simplifies wiring and interfacing which can reduce total system cost
Enhanced sensitivity, ±7 Gauss typical, allows for larger air gaps (up to 2,5 mm [0.098 in]) and higher pole density (up to
50-pole pairs depending on ring diameter).
VF401 Applications
Speed encoding using a multipole ring magnet
Enhanced accuracy rotational position sensing
Wheel speed sensing
Window lift applications
Speed and direction sensing
Shaft speed encoding using a multipole ring magnet
Enhanced accuracy rotational position sensing
Precision motor speed measurement
Speed control in machine tools
Elevator speed sensing
Speed control in motorized industrial equipment
Shaft speed encoding using a multipole ring magnet
