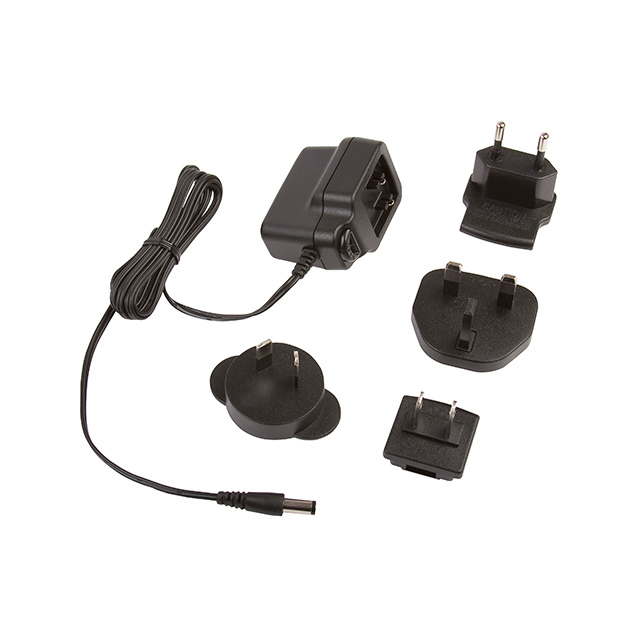

VER05US060-JA

Manufacturer :

XP Power

Product Category :

Published :

2014

REACH SVHC :

No SVHC

Factory Lead Time :

23 Weeks

Number of Outputs :

1

No Load Power Consumption :

100mW Max

Output Power :

5W

Mount :

Wall

Current - Output 1 :

830mA

Series :

VER05 (5W)

Applications :

ITE (Commercial)

Weight :

0.28lb 127.01g

Region Utilized :

International

Min Input Voltage (AC) :

90V

Operating Temperature :

0°C~60°C

Max Input Voltage (AC) :

264V

Voltage - Input :

90V~264VAC

Height :

42.926mm

Approval Agency :

CB

Input Connector :

Multi-Blade

Nominal Output Voltage :

6V

Max Voltage Rating (AC) :

264V

Input Type :

Multi-Blade (Included)

Moisture Sensitivity Level (MSL) :

Not Applicable

Efficiency :

Level V

Max Output Power :

5W

Max Power Dissipation :

5W

Polarity :

Positive

Polarization :

Positive Center

Connector Type :

PLUG

Voltage - Output 1 :

6V

Output Connector :

Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm

Cord Length :

59 1.50m

Max Output Current :

830mA

Size / Dimension :

2.16Lx1.45W x 1.69 H 54.9mmx37.0mmx42.9mm

RoHS Status :

ROHS3 Compliant

Form :

Wall Mount (Class II)
