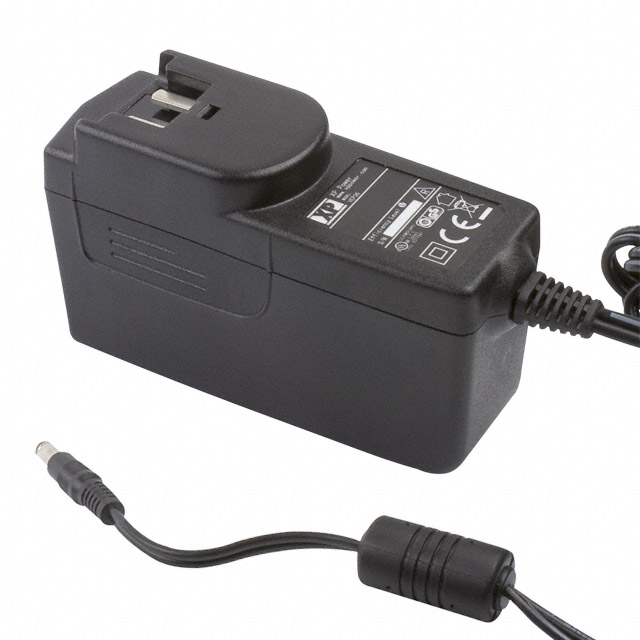

VEP36US24

Manufacturer :

XP Power

Product Category :

Operating Temperature :

0°C~40°C

Moisture Sensitivity Level (MSL) :

Not Applicable

Polarity :

Positive

Efficiency :

Level V

Max Input Voltage :

264V

No Load Power Consumption :

300mW Max

Power Rating :

36W

Polarization :

Positive Center

Output Connector :

Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm

Region Utilized :

International

Applications :

ITE (Commercial), Medical

Width :

36.068mm

Approval Agency :

CB, TUV, UL

Size / Dimension :

4.02Lx1.42W x 2.09 H 102.0mmx36.0mmx53.0mm

Max Output Current :

1.5A

RoHS Status :

ROHS3 Compliant

Max Output Power :

36W

Published :

2011

Current - Output 1 :

1.5A

Connector Type :

PLUG

Output Power :

36W

Mount :

Plug-In

Height :

53.086mm

Min Input Voltage :

90V

Max Input Voltage (AC) :

264V

Series :

VEP36 (36W)

Input Connector :

Multi-Blade

Cord Length :

39.4 1.00m

Input Type :

Multi-Blade (Sold Separately)

REACH SVHC :

No SVHC

Weight :

0.573lb 259.91g

Current - Output (Max) :

1.5A

Form :

Wall Mount (Class II)

Max Operating Temperature :

40°C

Length :

102.108mm

Nominal Output Voltage :

24V

Max Power Dissipation :

36W

Voltage - Output 1 :

24V

Voltage - Output :

24V

Power (Watts) :

36W

Output Current :

1.5A

Min Operating Temperature :

0°C

Min Input Voltage (AC) :

90V

Voltage - Input :

90V~264VAC

Number of Outputs :

1
