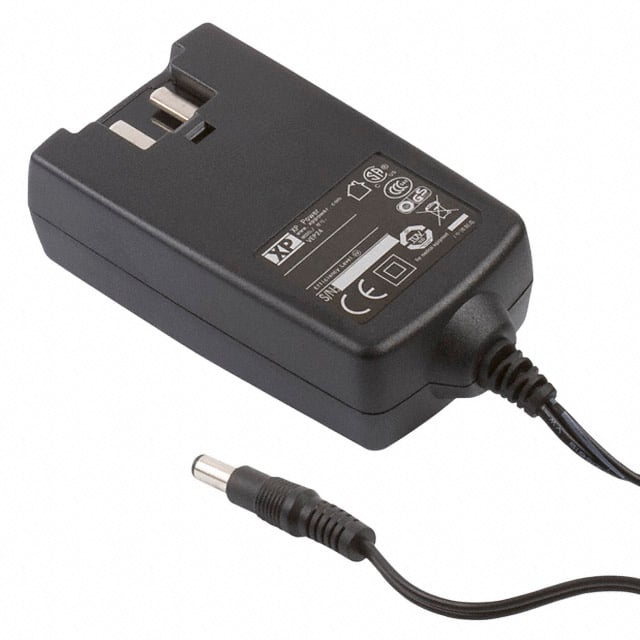

VEP24US05

Manufacturer :

XP Power

Product Category :

RoHS Status :

ROHS3 Compliant

Lead Length :

1.8m

Form :

Wall Mount (Class II)

Min Input Voltage (AC) :

80V

Max Input Voltage :

264V

Published :

2011

Polarization :

Positive Center

Min Operating Temperature :

0°C

REACH SVHC :

No SVHC

Height :

28.956mm

Region Utilized :

International

Current - Output (Max) :

2.5A

Cord Length :

59 1.50m

Current - Output 1 :

2.5A

Moisture Sensitivity Level (MSL) :

Not Applicable

Applications :

ITE (Commercial), Medical

Max Operating Temperature :

40°C

Max Input Voltage (AC) :

264V

Max Power Dissipation :

15W

Output Connector :

Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm

Voltage - Input :

80V~264VAC

Voltage - Output :

5V

Voltage - Output 1 :

5V

Output Current :

2.5A

Power (Watts) :

13W

Series :

VEP24 (24W)

Power Rating :

12.5W

Max Output Current :

2.5A

No Load Power Consumption :

300mW Max

Efficiency :

Level IV

Polarity :

Positive

Size / Dimension :

3.46Lx1.89W x 1.14 H 88.0mmx47.9mmx29.0mm

Length :

87.884mm

Nominal Output Voltage :

5V

Width :

48.006mm

Approval Agency :

CB, TUV, UL

Input Connector :

Multi-Blade

Isolation Voltage :

4kV

Number of Outputs :

1

Weight :

0.353lb 160.12g

Mount :

Wall

Operating Temperature :

0°C~40°C

Min Input Voltage :

80V

Input Type :

Multi-Blade (Sold Separately)

Max Output Power :

12.5W

Connector Type :

PLUG

Output Power :

12.5W
