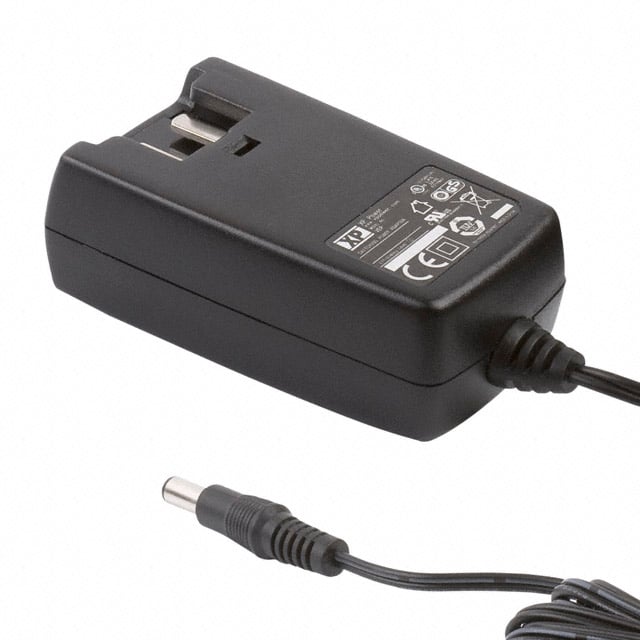

VEP08US05

Manufacturer :

XP Power

Product Category :

Published :

2011

Width :

42.418mm

Operating Temperature :

0°C~40°C

No Load Power Consumption :

300mW Max

Polarity :

Positive

Max Power Dissipation :

8W

Series :

VEP08 (8W)

Max Input Voltage :

264V

Max Input Voltage (AC) :

264V

Current - Output (Max) :

1.6A

Output Current :

1.6A

Max Operating Temperature :

40°C

Input Connector :

Multi-Blade

Output Connector :

Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm

Size / Dimension :

2.83Lx1.67W x 1.06 H 72.0mmx42.4mmx26.8mm

Cord Length :

70.9 1.80m

Min Operating Temperature :

0°C

Mount :

Wall

Max Output Power :

8W

Power (Watts) :

8W

Region Utilized :

International

Max Output Current :

1.6A

Applications :

ITE (Commercial), Medical

Connector Type :

PLUG

Power Rating :

8W

Min Input Voltage (AC) :

80V

REACH SVHC :

No SVHC

Voltage - Input :

80V~264VAC

Min Input Voltage :

80V

Weight :

0.177lb 80.29g

Height :

26.924mm

Efficiency :

Level V

Approval Agency :

CB, TUV, UL

RoHS Status :

ROHS3 Compliant

Current - Output 1 :

1.6A

Nominal Output Voltage :

5V

Voltage - Output :

5V

Input Type :

Multi-Blade (Sold Separately)

Output Power :

8W

Lead Length :

1.8m

Number of Outputs :

1

Polarization :

Positive Center

Form :

Wall Mount (Class II)

Moisture Sensitivity Level (MSL) :

Not Applicable

Voltage - Output 1 :

5V

Length :

71.882mm

Isolation Voltage :

4kV
