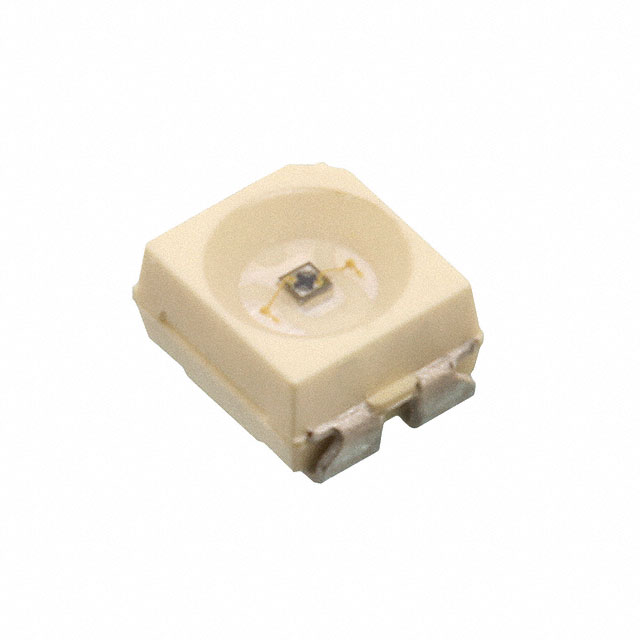

VEMT4700-GS08

Manufacturer :

Vishay

Product Category :

Optical Sensors - Phototransistors

Max Collector Current :

50mA

Length :

3.5mm

Max Breakdown Voltage :

70V

Height :

1.75mm

Lead Free :

Lead Free

Current - Collector (Ic) (Max) :

100mA

REACH SVHC :

Unknown

Size :

2.4mm

Packaging :

Tape and Reel (TR)

Infrared Range :

yes

Package / Case :

4-SMD, J-Lead

Collector Emitter Voltage (VCEO) :

70V

On-State Current-Max :

0.05A

Additional Feature :

HIGH SENSITIVITY

Fall Time (Typ) :

6 μs

Max Power Dissipation :

100mW

Pbfree Code :

yes

Series :

Automotive, AEC-Q100

Light Current-Nom :

0.5mA

Rise Time :

6μs

Published :

2008

Dark Current :

200nA

Number of Functions :

1

Configuration :

Single

Number of Pins :

3

Collector Emitter Saturation Voltage :

150mV

Width :

2.8mm

Factory Lead Time :

7 Weeks

Mounting Type :

Surface Mount

Lens Style :

Flat

RoHS Status :

ROHS3 Compliant

Radiation Hardening :

No

Mount :

Surface Mount

Operating Temperature :

-40°C~100°C TA

Optoelectronic Device Type :

PHOTO TRANSISTOR

Polarity :

NPN

Power Dissipation :

100mW

Number of Elements :

1

Collector Emitter Breakdown Voltage :

70V

Orientation :

Top View

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Viewing Angle :

120°

Power Consumption :

100mW

Shape :

Round

Wavelength :

850nm
