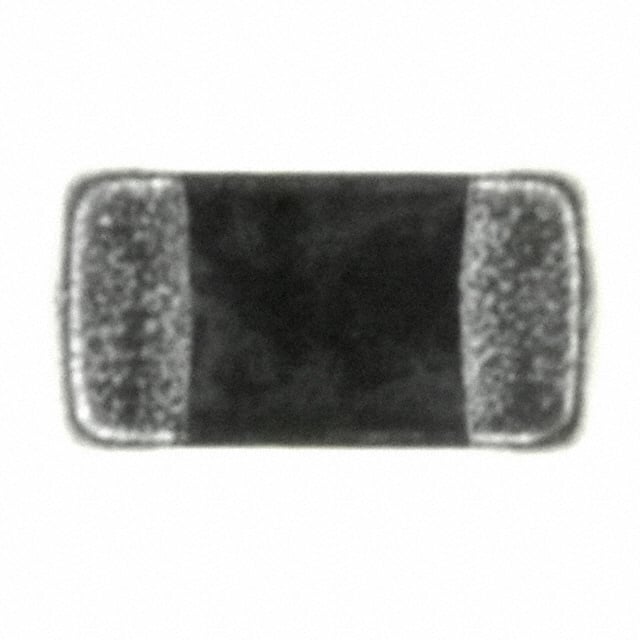

VC120614A300DP

Manufacturer :

KYOCERA AVX

Product Category :

Operating Supply Voltage :

14V

Max Voltage Rating (AC) :

10V

Voltage Tolerance :

12%

Width :

1.6mm

Voltage - Rated AC :

10V

Case Code (Metric) :

3216

Packaging :

Tape and Reel (TR)

Package / Case :

1206 (3216 Metric)

Inductance :

1.7 nH

Factory Lead Time :

9 Weeks

Number of Terminations :

2

Varistor Voltage (Max) :

20.72V

Mounting Type :

Surface Mount, MLCV

JESD-609 Code :

e3

Material :

Ceramic

Resistor Type :

VARISTOR

Packing Method :

TR, 7 INCH

Energy :

0.10J

Termination :

SMD/SMT

Max Voltage Rating (DC) :

14V

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2004

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Capacitance :

600pF

Capacitance @ Frequency :

600pF @ 1kHz

Number of Circuits :

1

Max Surge Current :

40A

Approval Agency :

UL

Pbfree Code :

yes

Depth :

1.6mm

Terminal Placement :

DUAL ENDED

Clamping Voltage :

32V

Clamping Current :

1A

Length :

3.2mm

Radiation Hardening :

No

RoHS Status :

ROHS3 Compliant

Varistor Voltage (Min) :

16.28V

Terminal Shape :

WRAPAROUND

Max Output Current :

40A

Series :

TransGuard®

Mount :

Surface Mount

Varistor Voltage :

18.5V

HTS Code :

8533.40.40.00

Breakdown Voltage :

18.5V

Operating Temperature :

-55°C~125°C TA

REACH SVHC :

No SVHC

ESD Protection :

yes

Case Code (Imperial) :

1206

Voltage - Rated DC :

14V

Height :

1.02mm

Lead Free :

Lead Free
