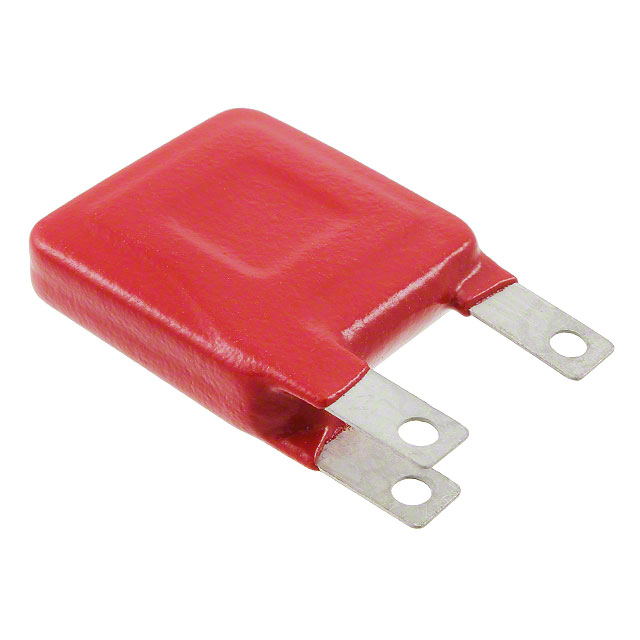

V751DHB34

Manufacturer :

Littelfuse

Product Category :

Additional Feature :

HEIGHT INCLUDE TERMINAL

Max Voltage Rating (AC) :

750V

ECCN Code :

EAR99

Varistor Voltage :

1.2kV

Reach Compliance Code :

Unknown

Terminal Shape :

Lug

Package / Case :

Square 34mm, Tabs

Terminal Finish :

Tin (Sn)

Clamping Voltage :

2kV

Series :

DHB34

Varistor Voltage (Max) :

1.32kV

Voltage - Rated DC :

970V

Number of Terminations :

3

Diameter :

34mm

Packaging :

Bulk

Resistor Type :

VARISTOR

Varistor Voltage (Min) :

1.08kV

Mount :

Radial, Through Hole

Terminal Placement :

DUAL IN-LINE

Maximum AC Volts :

750V

Capacitance @ Frequency :

1800pF @ 1MHz

Factory Lead Time :

11 Weeks

Capacitance :

1.8nF

JESD-609 Code :

e3

Max Voltage Rating (DC) :

970V

Mounting Type :

Through Hole

Operating Temperature :

-55°C~85°C TA

RoHS Status :

ROHS3 Compliant

Number of Circuits :

1

Max Surge Current :

40kA

Pbfree Code :

yes

HTS Code :

8533.40.40.00

Termination :

Solder

Voltage - Rated AC :

750V

Energy :

1050J

Published :

2010

Lead Free :

Contains Lead

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
