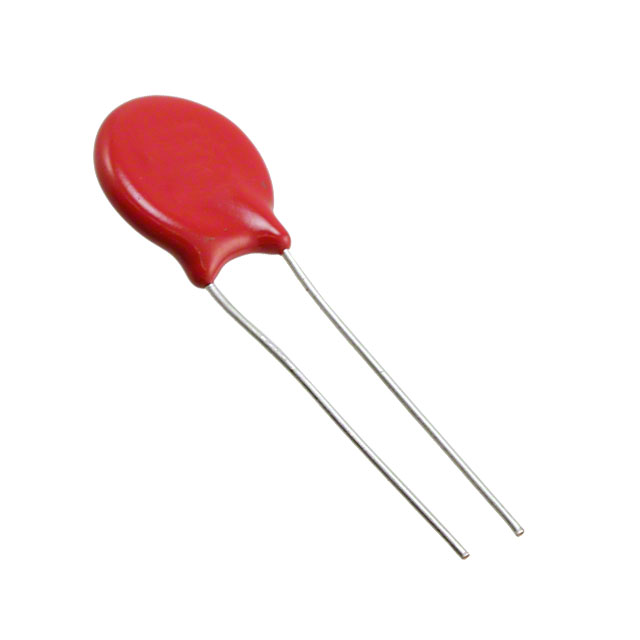

V68ZA10P

Manufacturer :

Littelfuse

Product Category :

Package / Case :

Disc 14mm

Current Rating :

10A

ECCN Code :

EAR99

Factory Lead Time :

14 Weeks

Max Surge Current :

1kA

Varistor Voltage :

75V

Clamping Current :

10A

Voltage - Rated AC :

40V

Lead Length :

25.4mm

Varistor Voltage (Max) :

74.8V

Max Output Current :

1kA

Clamping Voltage :

135V

Energy :

13J

Capacitance @ Frequency :

3870pF @ 1MHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead/Base Style :

Radial

Max Voltage Rating (DC) :

56V

Capacitance :

3.87nF

Pbfree Code :

yes

Diameter :

14mm

Resistor Type :

VARISTOR

Packaging :

Bulk

Mounting Type :

Through Hole

Number of Terminations :

2

Number of Circuits :

1

Lead Free :

Lead Free

Operating Temperature :

-55°C~85°C TA

Temperature Coefficient :

0.05 ppm/°C

JESD-609 Code :

e3

Series :

ZA

Voltage - Rated DC :

56V

Varistor Voltage (Typ) :

68V

Thickness :

5.6mm

Terminal Finish :

Tin (Sn)

Max Voltage Rating (AC) :

40V

Width :

5.6mm

HTS Code :

8533.40.40.00

Terminal Shape :

Wire

Depth :

5.6mm

RoHS Status :

ROHS3 Compliant

Published :

2005

Mount :

Radial, Through Hole

Varistor Voltage (Min) :

61.2V

Rated Power Dissipation (P) :

0.6W

REACH SVHC :

Unknown

Lead Pitch :

8.5mm
