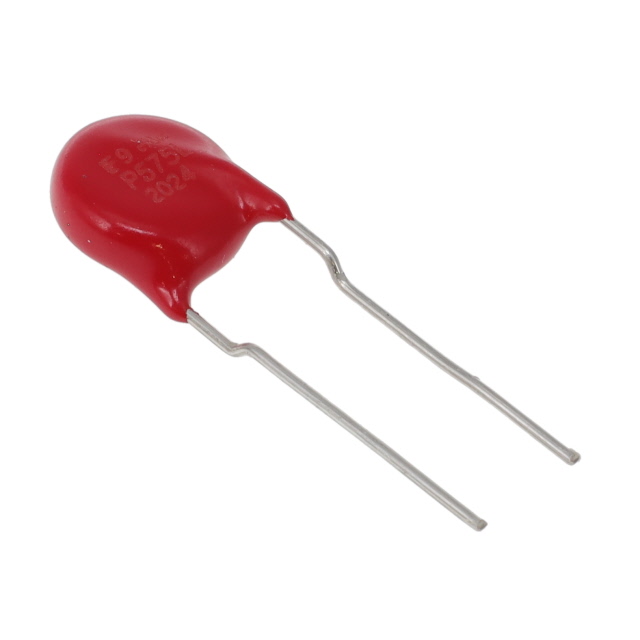

V575LU10P

Manufacturer :

Littelfuse

Product Category :

Maximum AC Volts :

575V

Voltage - Rated DC :

730V

Pbfree Code :

yes

Number of Circuits :

1

JESD-609 Code :

e3

Package / Case :

Disc 10mm

Max Voltage Rating (AC) :

575V

Mounting Type :

Through Hole

Max Voltage Rating (DC) :

730V

Terminal Shape :

Wire

Published :

2014

HTS Code :

8533.40.40.00

Series :

LU

Diameter :

10mm

Rated Power Dissipation (P) :

0.4W

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Varistor Voltage :

910V

Varistor Voltage (Max) :

1.001kV

ECCN Code :

EAR99

Number of Terminations :

2

Max Surge Current :

2.5kA

Factory Lead Time :

14 Weeks

Capacitance :

90pF

Packaging :

Tape and Reel (TR)

Packing Method :

TR

Terminal Finish :

Tin (Sn)

Clamping Voltage :

1.5kV

Varistor Voltage (Min) :

819V

Capacitance @ Frequency :

90pF @ 1MHz

RoHS Status :

ROHS3 Compliant

Mount :

Radial, Through Hole

Termination :

Radial

Resistor Type :

VARISTOR

Operating Temperature :

-55°C~85°C TA

Reach Compliance Code :

Unknown

Energy :

65J

Voltage - Rated AC :

575V
