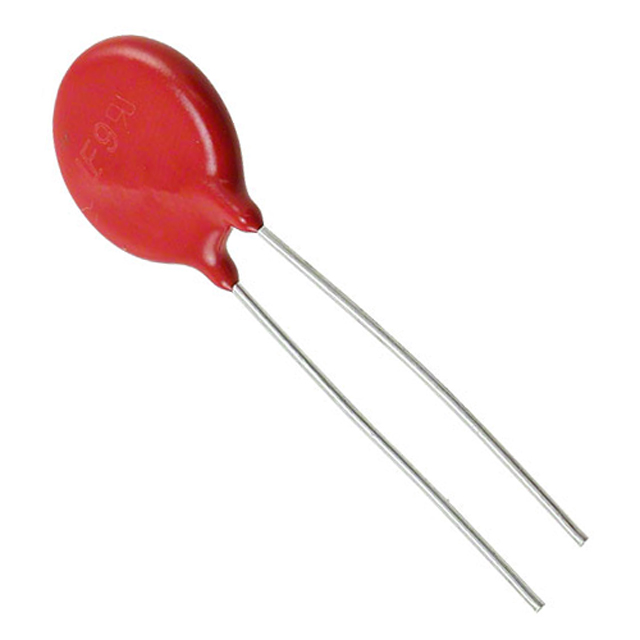

V47ZA7P

Manufacturer :

Littelfuse

Product Category :

Max Voltage Rating (DC) :

38V

Lead/Base Style :

Radial

Clamping Current :

10A

Packaging :

Bulk

JESD-609 Code :

e3

Max Voltage Rating (AC) :

30V

Width :

5mm

Varistor Voltage (Max) :

51.7V

RoHS Status :

ROHS3 Compliant

Operating Temperature :

-55°C~85°C TA

ECCN Code :

EAR99

Height :

20mm

Varistor Voltage (Typ) :

47V

Voltage - Rated DC :

38V

Varistor Voltage :

52V

Terminal Finish :

Matte Tin (Sn)

Varistor Voltage (Min) :

42.3V

Terminal Shape :

Wire

REACH SVHC :

Unknown

Resistor Type :

VARISTOR

Pbfree Code :

yes

Voltage - Rated AC :

30V

Number of Circuits :

1

Energy :

8.8J

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ESD Protection :

No

Temperature Coefficient :

0.05 ppm/°C

Capacitance @ Frequency :

6270pF @ 1MHz

Factory Lead Time :

14 Weeks

Rated Power Dissipation (P) :

0.6W

Tolerance :

10%

Depth :

5mm

Clamping Voltage :

93V

Series :

ZA

Published :

2005

Number of Terminations :

2

Mounting Type :

Through Hole

Max Surge Current :

1kA

Diameter :

14mm

Thickness :

5mm

Package / Case :

Disc 14mm

Lead Length :

25.4mm

Lead Pitch :

8.5mm

Mount :

Radial, Through Hole

HTS Code :

8533.40.40.00

Max Output Current :

1kA

Capacitance :

4.5nF

Current Rating :

10A
