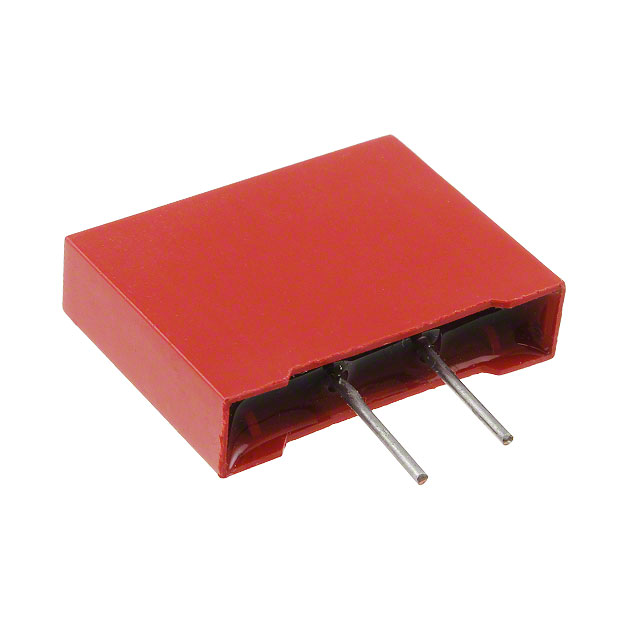

V36RA22

Manufacturer :

Littelfuse

Product Category :

Terminal Shape :

Wire

Depth :

6.3mm

HTS Code :

8533.40.40.00

Resistor Type :

VARISTOR

Mount :

Radial, Through Hole

Factory Lead Time :

9 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Diameter :

22mm

Max Voltage Rating (AC) :

23V

Voltage - Rated DC :

31V

Number of Circuits :

1

Max Output Current :

2kA

Length :

25.5mm

Packaging :

Bulk

Series :

RA

Max Voltage Rating (DC) :

31V

Max Surge Current :

2kA

Capacitance @ Frequency :

12000pF @ 1MHz

Varistor Voltage :

36V

Pbfree Code :

No

Number of Terminations :

2

Reach Compliance Code :

Unknown

Operating Temperature :

-55°C~125°C TA

Clamping Current :

20A

Lead Free :

Contains Lead

Lead Pitch :

7.5mm

Mounting Type :

Through Hole

Capacitance :

12nF

Varistor Voltage (Max) :

39.6V

Clamping Voltage :

63V

Energy :

160J

Voltage - Rated AC :

23V

Package / Case :

Radial, Box

Termination :

Through Hole

Published :

2008

RoHS Status :

Non-RoHS Compliant

ECCN Code :

EAR99

Lead/Base Style :

Radial

Varistor Voltage (Min) :

32.4V
