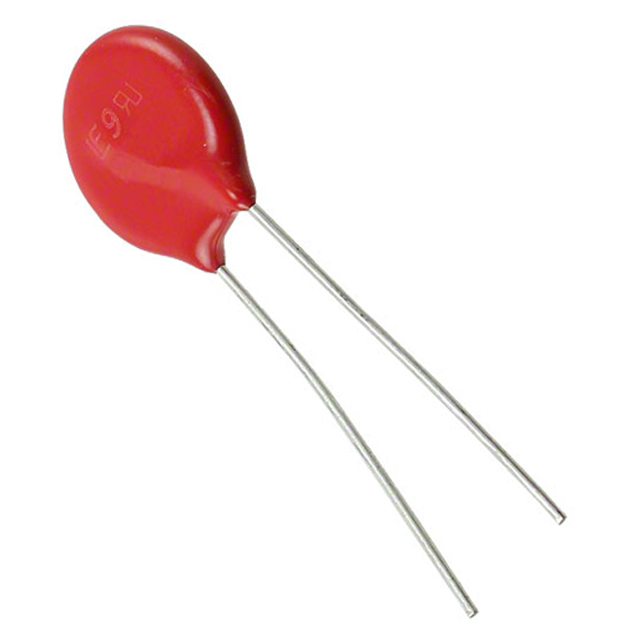

V33ZA5P

Manufacturer :

Littelfuse

Product Category :

HTS Code :

8533.40.40.00

Capacitance :

6nF

Factory Lead Time :

14 Weeks

Depth :

5mm

Varistor Voltage (Min) :

29.7V

Width :

5.6mm

Varistor Voltage (Typ) :

33V

ECCN Code :

EAR99

Number of Terminations :

2

Pbfree Code :

yes

Thickness :

5mm

Max Voltage Rating (AC) :

20V

Max Voltage Rating (DC) :

26V

Published :

2005

REACH SVHC :

Unknown

Max Output Current :

1kA

Varistor Voltage :

36.5V

Lead Pitch :

8.5mm

JESD-609 Code :

e3

Package / Case :

Disc 14mm

Series :

ZA

Operating Temperature :

-55°C~85°C TA

Clamping Voltage :

65V

Capacitance @ Frequency :

9290pF @ 1MHz

Voltage - Rated DC :

26V

Mounting Type :

Through Hole

Voltage - Rated AC :

20V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Temperature Coefficient :

0.05 ppm/°C

Diameter :

14mm

Max Surge Current :

1kA

Terminal Finish :

Tin (Sn)

Resistor Type :

VARISTOR

Clamping Current :

10A

Mount :

Radial, Through Hole

Lead/Base Style :

Radial

Terminal Shape :

Wire

Lead Length :

25.4mm

Lead Free :

Lead Free

Rated Power Dissipation (P) :

0.6W

Packaging :

Bulk

Number of Circuits :

1

Varistor Voltage (Max) :

36.3V

Energy :

6.0J
