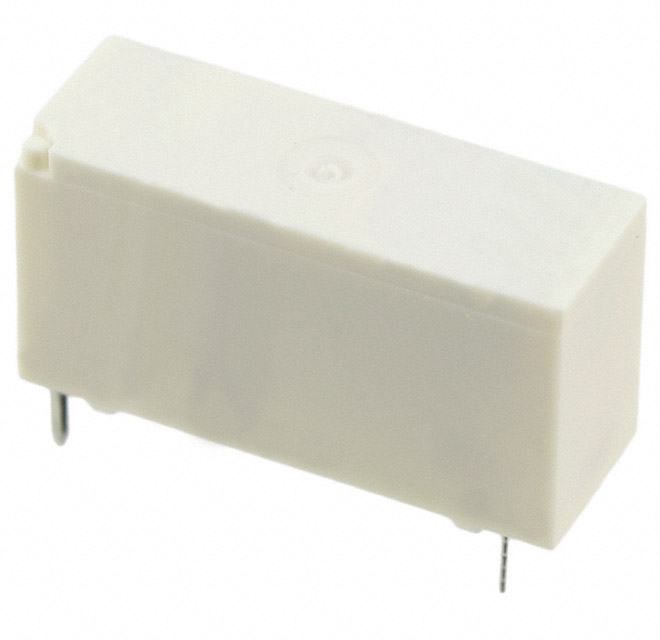

V23061A1007A302

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Power Relays, Over 2 Amps

Body Length or Diameter :

28.6 mm

Contact/Output Supply Type :

AC/DC

Coil Operate Voltage(DC) :

16.3 V

Relay Type :

POWER/SIGNAL RELAY

Width :

10 mm

Coil Insulation :

Class A

Reach Compliance Code :

Compliant

Contact Rating (Current) :

8 A

Compliance :

VDE, C-UR-US

Coil Voltage(DC)-Max :

24 V

Operate Time :

13 ms

Product Status :

Active

Type :

Standard

Number of Poles :

1

Packaging :

Tube

Electrical Life :

100000 Cycle(s)

Subcategory :

Relays

Coil Power :

254 mW

Terminal Type :

Through Hole

Seal Rating :

Sealed - Fully

Product :

Power Relays

Coil/Input Supply Type :

DC

Power Consumption :

254 mW

Contact Configuration :

SPST

Terminal Length :

0.004 inch

Contact Form :

SPST (1 Form A)

Product Type :

General Purpose Relays

Release Time :

8 ms

Mounting Style :

PCB Mount

PCB Hole Count :

4

Application :

Power

Coil Resistance :

2270 Ω

Coil Release Voltage(DC) :

2.4 V

Contact Material :

Silver Tin Oxide (AgSnO)

Termination Type :

Solder

Contact Voltage(AC)-Max :

250 V

Brand :

TE Connectivity

Depth :

10mm

Reference Standard :

CUL; UL; VDE

Coil Current(DC)-Max :

0.011 A

Surface Mount :

No

Switching Current :

8A

Height :

15mm

Packing Method :

BOX; TUBE

Body Breadth :

10 mm

Mounting Type :

PCB Mount

Must Release Voltage :

2.4 VDC

Product Category :

General Purpose Relays

Base Product Number :

V23061

Contact Current(DC)-Max :

8 A

Features :

-

Switching Voltage :

400 VAC

Package :

Tube

Weight :

11 g

Length :

28.6mm

Relay Function :

SPST

Sealing :

RT3

Coil Voltage :

24V dc

Contact Termination :

Solder Pin

Physical Dimension :

28.6mm x 10mm x 15mm

End Contact Material :

Silver Tin Oxide

Contact Current(AC)-Max :

8 A

RoHS :

Details

Must Operate Voltage :

16.3 VDC

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Operating Temperature :

-40°C ~ 85°C

Coil Current :

10.6 mA

Series :

MSR

Number of Terminals :

4

Relay Action :

Momentary

Dielectric Strength Between Coil and Contacts :

4000 Vrms

Contact Current Rating :

8 A

Relay Form :

1 FORM A

Termination Style :

PC Pin

Body Height :

15 mm

Coil Type :

Non-Latching
