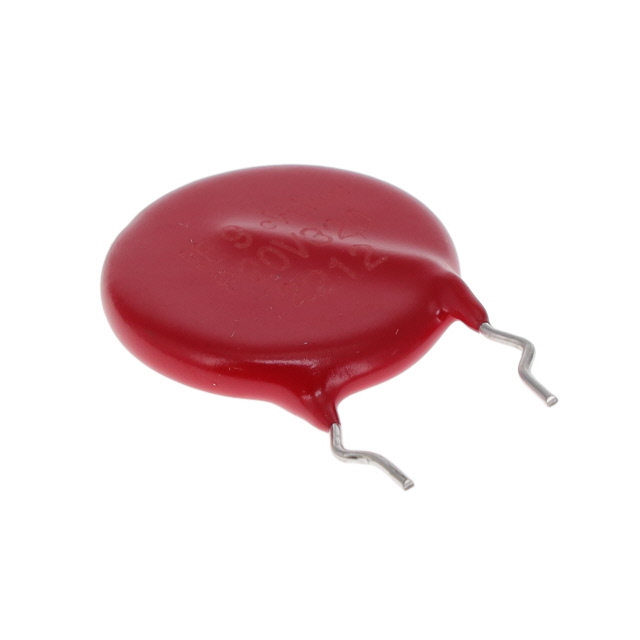

V20E320PL4B

Manufacturer :

Littelfuse

Product Category :

Max Voltage Rating (AC) :

320V

Diameter :

20mm

Resistor Type :

VARISTOR

Number of Circuits :

1

RoHS Status :

ROHS3 Compliant

Mounting Type :

Through Hole

Capacitance :

1.1nF

Maximum AC Volts :

320V

Lead Pitch :

11mm

Published :

2011

Number of Terminations :

2

Width :

5.6mm

Lead/Base Style :

Radial

Package / Case :

Disc 20mm

Depth :

5.6mm

Factory Lead Time :

18 Weeks

Max Surge Current :

10kA

Clamping Current :

100A

Capacitance @ Frequency :

750pF @ 1MHz

Varistor Voltage (Min) :

459V

HTS Code :

8533.40.40.00

Packaging :

Bulk

Varistor Voltage :

510V

Energy :

273J

Voltage - Rated DC :

300V

JESD-609 Code :

e3

Current Rating :

100A

Terminal Finish :

Tin (Sn)

ECCN Code :

EAR99

Pbfree Code :

No

Voltage - Rated AC :

230V

Max Voltage Rating (DC) :

420V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Rated Power Dissipation (P) :

1W

Series :

UltraMOV™

Clamping Voltage :

595V

Varistor Voltage (Typ) :

510V

Varistor Voltage (Max) :

561V

Terminal Shape :

Wire

Operating Temperature :

-55°C~85°C TA

Mount :

Through Hole
