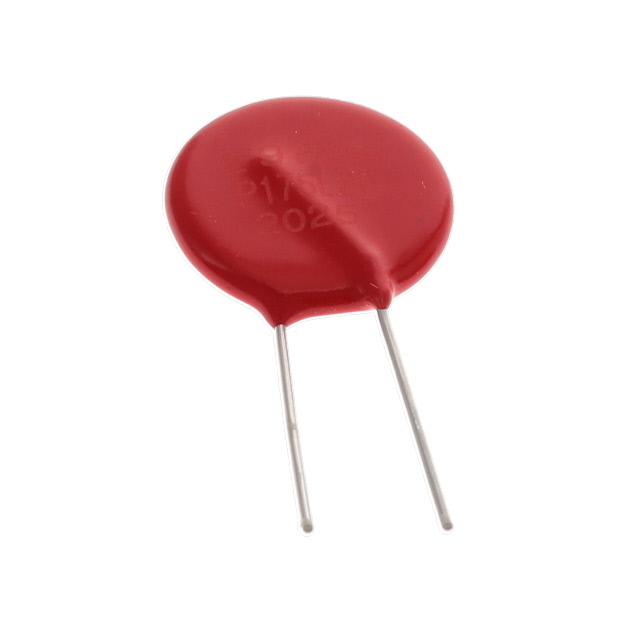

V175LS20AP

Manufacturer :

Littelfuse

Product Category :

RoHS Status :

ROHS3 Compliant

HTS Code :

8533.40.40.00

Varistor Voltage (Min) :

243V

Operating Temperature :

-55°C~85°C TA

Termination :

Radial

Mounting Type :

Through Hole

Resistor Type :

VARISTOR

Factory Lead Time :

18 Weeks

Mount :

Radial, Through Hole

Maximum AC Volts :

175V

Max Voltage Rating (AC) :

175V

Energy :

90J

Diameter :

20mm

Max Voltage Rating (DC) :

225V

Terminal Shape :

Wire

Varistor Voltage :

270V

Voltage - Rated AC :

175V

Max Surge Current :

6.5kA

Packaging :

Tape and Reel (TR)

Terminal Finish :

Tin (Sn)

Reach Compliance Code :

Unknown

Series :

LS

Published :

2014

Number of Circuits :

1

Number of Terminations :

2

Pbfree Code :

yes

Capacitance @ Frequency :

1400pF @ 1MHz

Packing Method :

TR

Package / Case :

Disc 20mm

Capacitance :

1.4nF

Voltage - Rated DC :

225V

Clamping Voltage :

455V

Varistor Voltage (Max) :

297V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

JESD-609 Code :

e3
