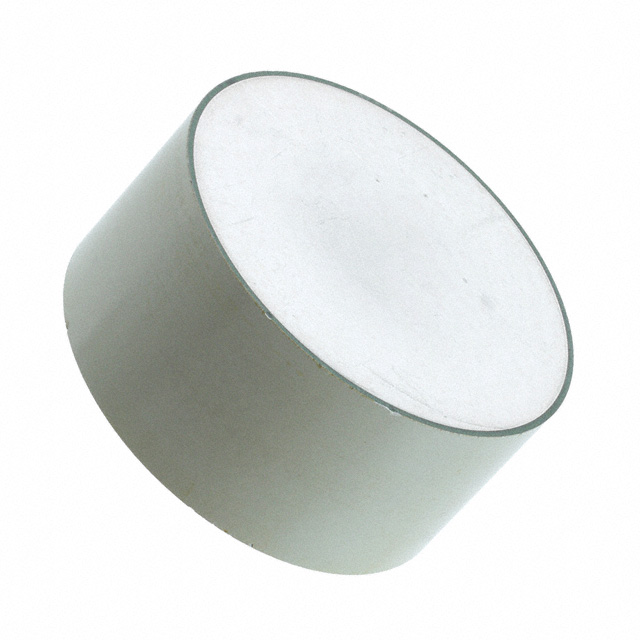

V172CA60

Manufacturer :

Littelfuse

Product Category :

Pbfree Code :

No

Published :

2005

Number of Circuits :

1

Termination :

Solder

Number of Terminations :

2

Varistor Voltage (Max) :

3.03kV

Mounting Type :

Surface Mount

Voltage - Rated DC :

2.15kV

Rated Power Dissipation (P) :

2.5W

Lead Free :

Contains Lead

Capacitance :

1.5nF

Energy :

6000J

Series :

CA

Varistor Voltage (Min) :

2.5kV

Terminal Placement :

Dual

Reach Compliance Code :

Unknown

Voltage - Rated AC :

1.7kV

Max Voltage Rating (DC) :

2.15kV

Mount :

Surface Mount

HTS Code :

8533.40.40.00

Max Surge Current :

70kA

Factory Lead Time :

10 Weeks

Terminal Shape :

SPECIAL

Resistor Type :

VARISTOR

Packaging :

Bulk

Package / Case :

Disc 60mm

ECCN Code :

EAR99

Max Voltage Rating (AC) :

1.7kV

Operating Temperature :

-55°C~85°C TA

Current Rating :

70kA

RoHS Status :

Non-RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Varistor Voltage :

2.7kV

Diameter :

60mm

Clamping Voltage :

4.3kV

Capacitance @ Frequency :

1500pF @ 1MHz
