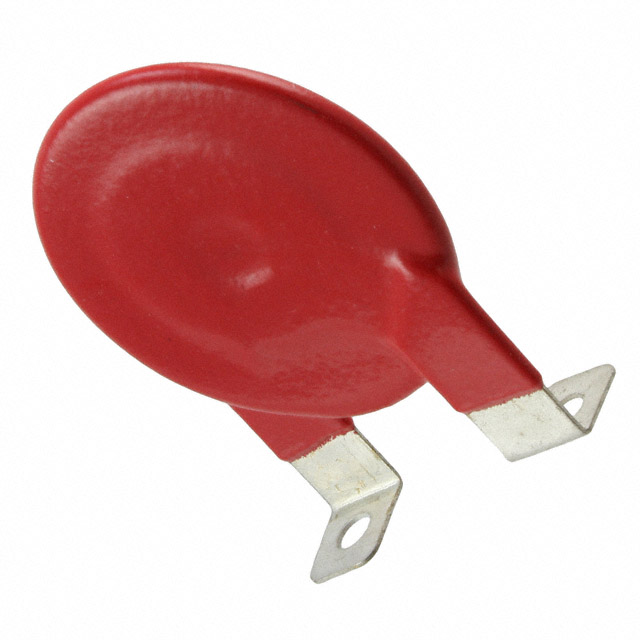

V151HA40

Manufacturer :

Littelfuse

Product Category :

Factory Lead Time :

11 Weeks

Published :

1999

Pbfree Code :

yes

Capacitance :

8nF

Energy :

300J

Number of Terminations :

2

Max Surge Current :

40kA

Clamping Voltage :

405V

HTS Code :

8533.40.40.00

Series :

HA

Packaging :

Bulk

Max Voltage Rating (AC) :

150V

ECCN Code :

EAR99

Terminal Shape :

Lug

Varistor Voltage (Max) :

264V

REACH SVHC :

No SVHC

Insulation Resistance :

1GOhm

Voltage - Rated DC :

200V

Operating Temperature :

-55°C~85°C TA

Lead Pitch :

25mm

Mounting Type :

Bolt Mount

Mount :

Bolt, Surface Mount

Termination :

Through Hole

Terminal Finish :

Tin (Sn)

Lead Free :

Lead Free

Max Output Current :

40kA

RoHS Status :

ROHS3 Compliant

JESD-609 Code :

e3

Capacitance @ Frequency :

8000pF @ 1MHz

Rated Power Dissipation (P) :

2W

Diameter :

40mm

Resistor Type :

VARISTOR

Package / Case :

Disc 40mm, Formed Tabs

Max Voltage Rating (DC) :

200V

Terminal Placement :

Radial

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reach Compliance Code :

Unknown

Varistor Voltage :

240V

Number of Circuits :

1

Voltage - Rated AC :

150V

Varistor Voltage (Min) :

216V
